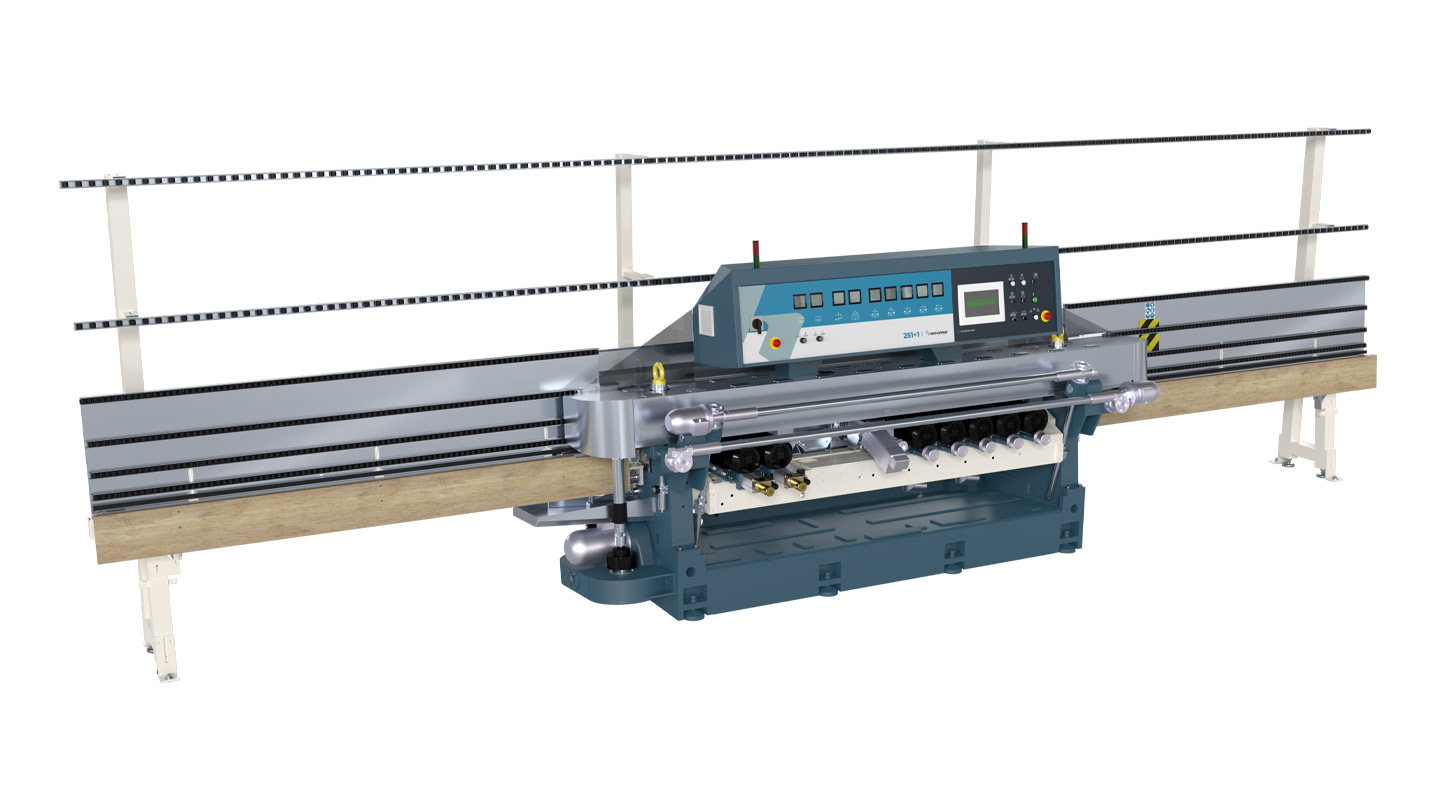

Bovone 251+1

Vertical Straight-Line Bevelling Machine for Precision Glass Finishing

The Bovone 251/1 is a single-spindle vertical bevelling machine engineered for high-precision edge work on flat glass. Designed for simplicity and durability, this solution is ideal for small production runs, prototyping, or specialised applications requiring detailed bevels without the scale of multi-spindle models.

Compact but capable, the 251/1 offers smooth and uniform glass finishing at variable angles, delivering the quality Bovone is renowned for in a single-head format.

Key Features

Vertical straight-line design for minimal floor space and optimal stability
Single-spindle bevelling head for detailed edge work
Variable bevel angles from 3° to 45°
Compact build suited to smaller-scale operations or specialised production
High-quality mechanical components for long-term precision

Applications

Architectural glass
Interior design features
Custom mirrors
Decorative panels
Prototyping and short-run fabrication

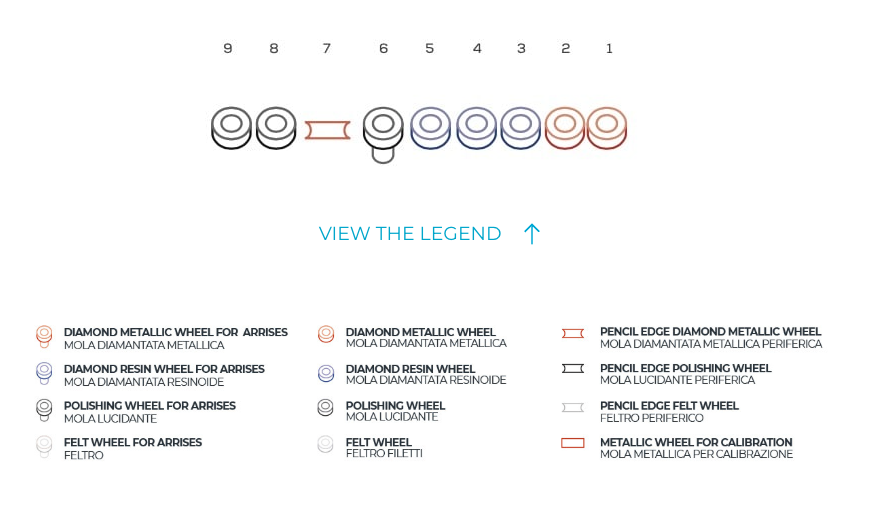

bovone 251+252 legend

Technical Data

SPECIFICATIONS
SPEED [m/min]	0.35 – 5.4
ARRIS WIDTH [mm]	2 (front)
MINIMUM SIZE [mm]	50 x 50
THICKNESS [mm]	3 – 25
ELECTRICAL POWER 400V 50Hz	400V 50Hz – 22kW 34A
DIMENSIONS LxWxH [mm]	6000 x 1300 x 2200
WEIGHT [Kg]	3500

Why Choose the Bovone 251+1

If your production requirements prioritise precision over volume, the 251+1 delivers focused performance with fewer components — reducing maintenance while ensuring consistent results. Backed by Bovone’s Italian-made reliability, this machine provides a streamlined solution for detailed bevelling tasks.
