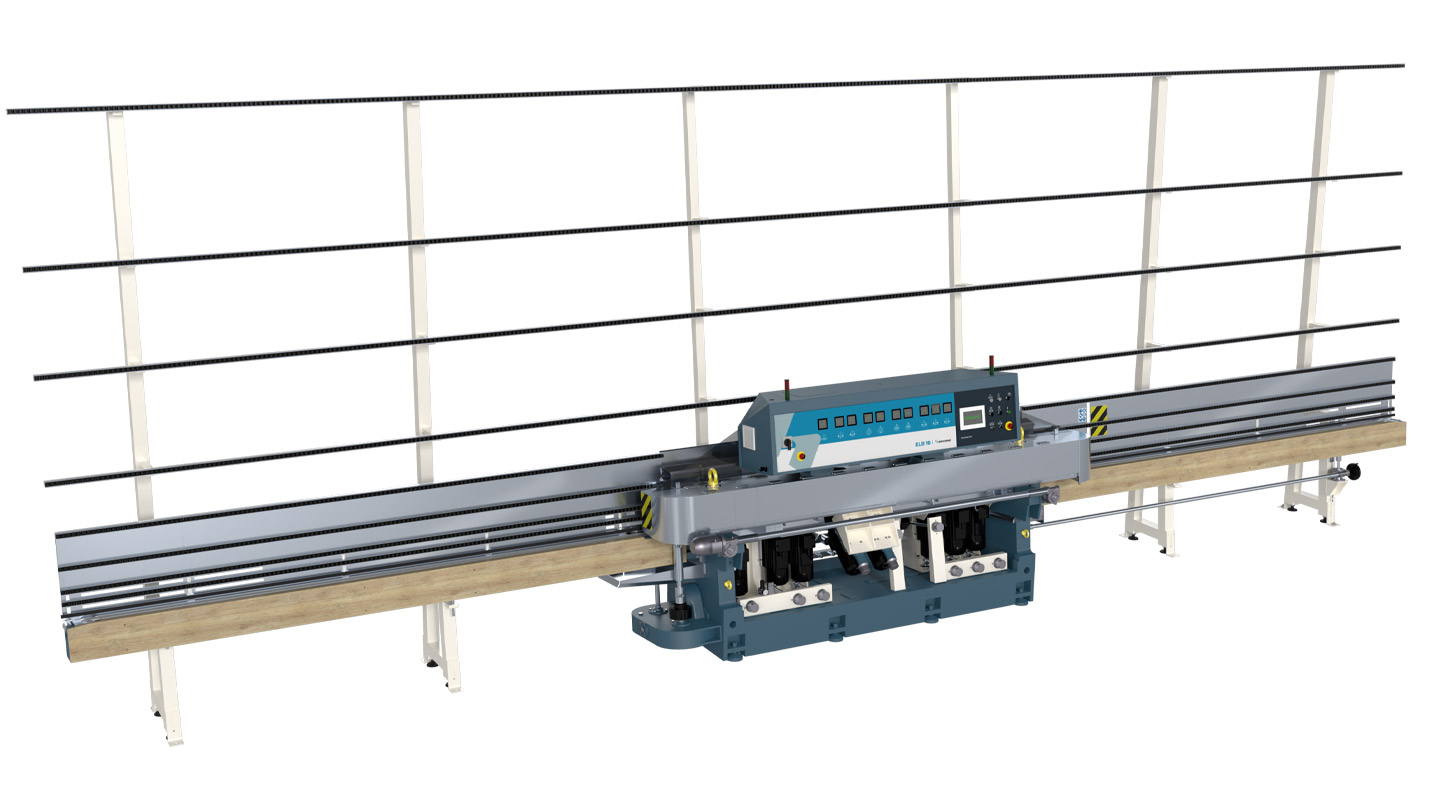

Bovone ELB 10

Precision Edging. Industrial Strength.

The ELB 10 from Bovone is a robust straight-line edging machine built for continuous, high-precision processing of flat glass sheets. With 10 wheels (6 for the edge and 2+2 for front and rear arris), it delivers a consistent polish and smooth edges in a single pass — ideal for commercial-scale production.

Designed for durability, this edging machine combines mechanical stability with top-tier components to minimise vibration and enhance surface quality. It supports a wide range of thicknesses, ensuring flexibility for various architectural and industrial glass applications.

Key Features

10-wheeled system for high-speed edging and polishing in one run
Heavy-duty steel frame ensures vibration-free operation and consistent quality
Wide thickness range for processing glass from 2mm up to 30mm (optionally 50mm)
Minimal maintenance design with easy access to core components
Ideal for glass processors working across architectural, interior, and industrial glass applications

Applications

Shower screens and glass doors
Architectural glazing and façades
Interior glass partitions
Balustrades and railing infill panels
Glass furniture and shelving

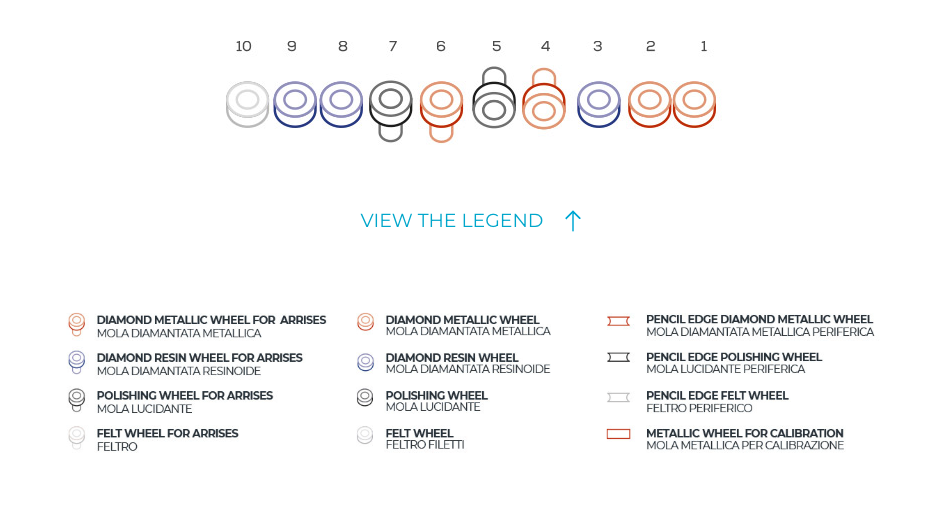

elb 10 legend

Technical Data

Feature	Specification
SPEED [m/min]	0.35 – 5.4
ARRIS WIDTH [mm]	5
MINIMUM SIZE [mm]	up to 6mm 40 x 40 up to19mm 50 x 50 or 40 x 80 above 19mm 70 x 70
THICKNESS [mm]	2 – 30 (OPT. 50)
ELECTRICAL POWER 400V 50Hz	400V 50Hz – 30kW / 68A
DIMENSIONS LxWxH [mm]	L: 7950 × W: 1250 × H: 2900
WEIGHT [Kg]	4150

Why Choose the Bovone ELB 10

Exceptional Polish Quality: Achieve flawless flat edge polishing in one pass with a 10-wheel configuration optimised for efficiency.
Stability at Speed: Engineered with a heavy-duty frame to reduce vibrations, even at high production speeds.
Built to Last: High-end materials and simplified mechanics deliver long-term reliability with minimal maintenance.
Versatility in Application: Handles everything from thin glass sheets to thicker panels, up to 30mm (optional 50mm).
Operator-Friendly Design: Intuitive controls and accessible components make daily operation seamless and straightforward.
