Bovone ELB 10+1

bovone logo

Fast, flawless flat-edge polishing with added cerium brilliance.


The Bovone ELB 10+1 is a high-performance straight-line edging machine designed to polish flat glass edges with speed, stability, and precision. With 10 diamond and resin wheels plus 1 cerium polishing wheel, this model is ideal for achieving brilliant finishes in a single pass.

Built for demanding fabrication and architectural glass applications, the ELB 10+1 maintains industry-leading quality thanks to Bovone’s rock-solid construction and consistent mechanical excellence.

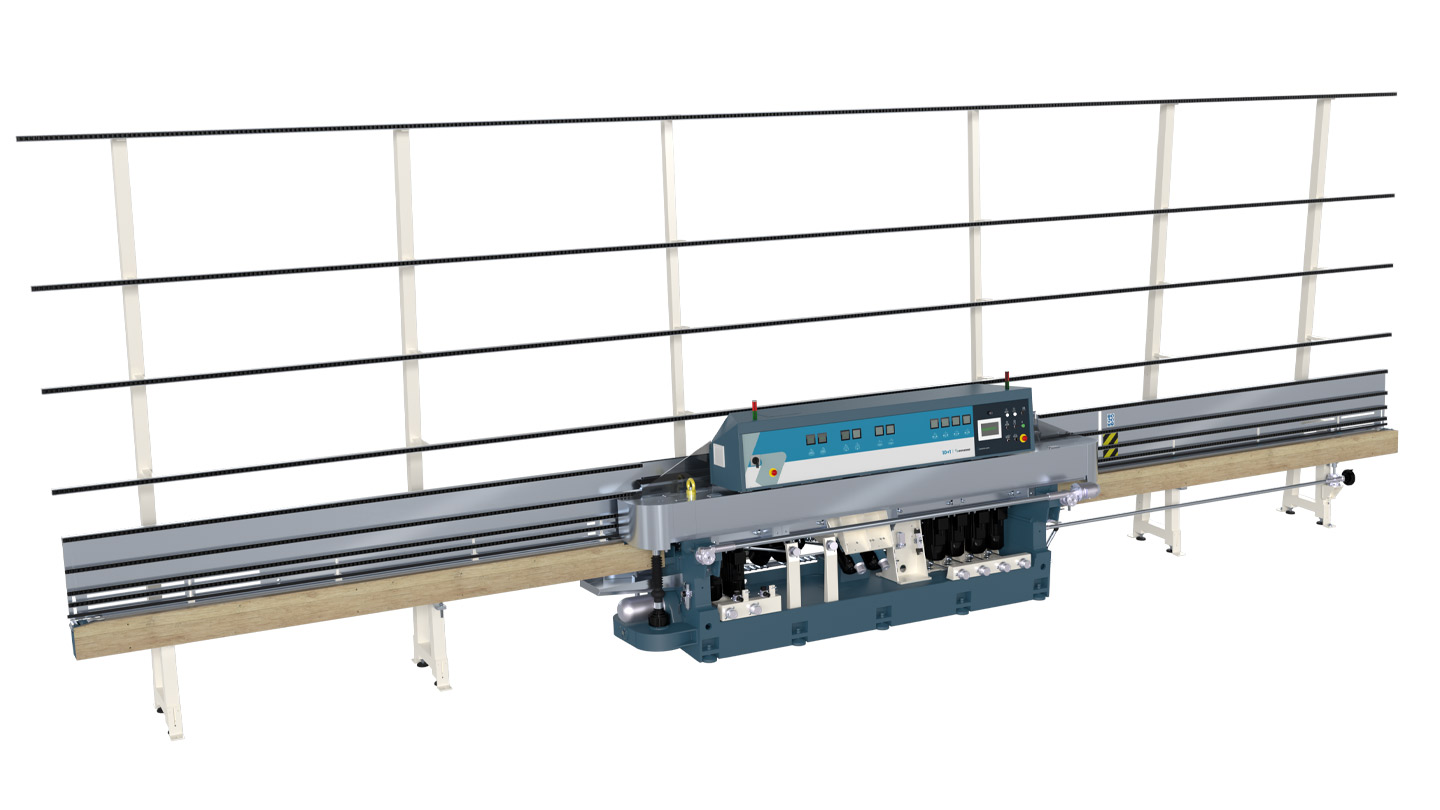

elb 10+1 machine

Key Features

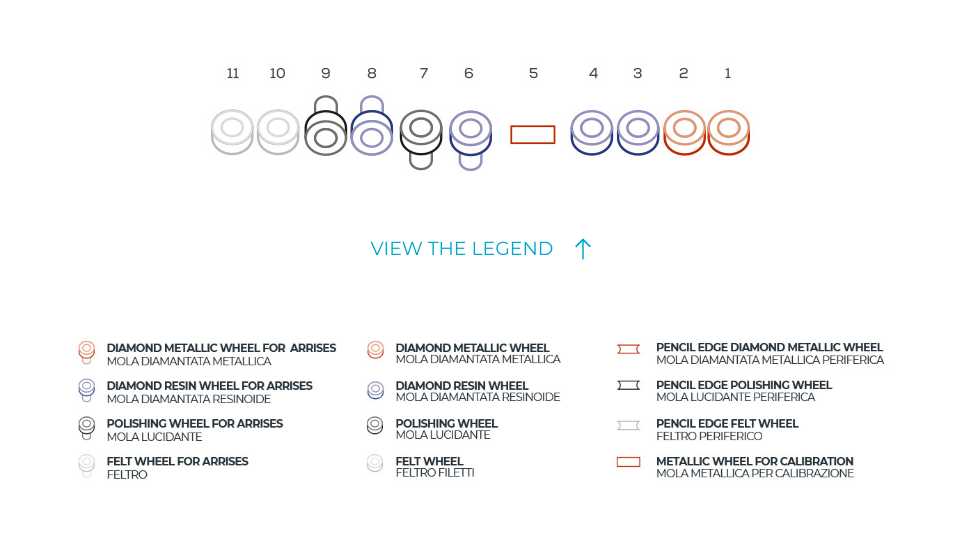

  • 10+1 Spindle Configuration: Combines diamond, resin, and cerium wheels to deliver exceptional edge polishing in a single cycle.
  • Heavy-Duty Frame: High structural rigidity eliminates vibrations and enhances processing accuracy.
  • Precision Finish: Consistent polishing quality across different glass thicknesses and formats.
  • User-Friendly Operation: Intuitive controls streamline workflow and minimise training time.
  • High Throughput: Designed for continuous, high-volume production environments.

Applications

  • Shower screens and mirrors
  • Interior partitions and balustrades
  • Furniture and shopfitting glass
  • Doors, façades, and commercial glazing
  • Architectural glass elements

elb 10+1 machine

Technical Data

Feature
 Specification
SPEED
[m/min]		0.35 – 5.4
ARRIS WIDTH
[mm]		5
MINIMUM SIZE
[mm]		up to 6mm 40 x 40
up to19mm 50 x 50 – 40 x 80
above 19mm 70 x 70
THICKNESS
[mm]		2 – 30
ELECTRICAL POWER
400V 50Hz		400V 50Hz / 30kW / 68A
DIMENSIONS
LxWxH
[mm]		7950 (L) x 1250 (W) x 2900 (H)
WEIGHT
[Kg]		4150

Why Choose the Bovone ELB 10+1

  • One-pass perfection: Save time and increase output with simultaneous edge and cerium polishing.
  • Unmatched reliability: Italian engineering and components ensure long-term operational performance.
  • Low maintenance: Durable parts and accessible design reduce downtime and servicing costs.
  • Superior results: Delivers brilliant edge quality that enhances final product value.
Download Brochure
