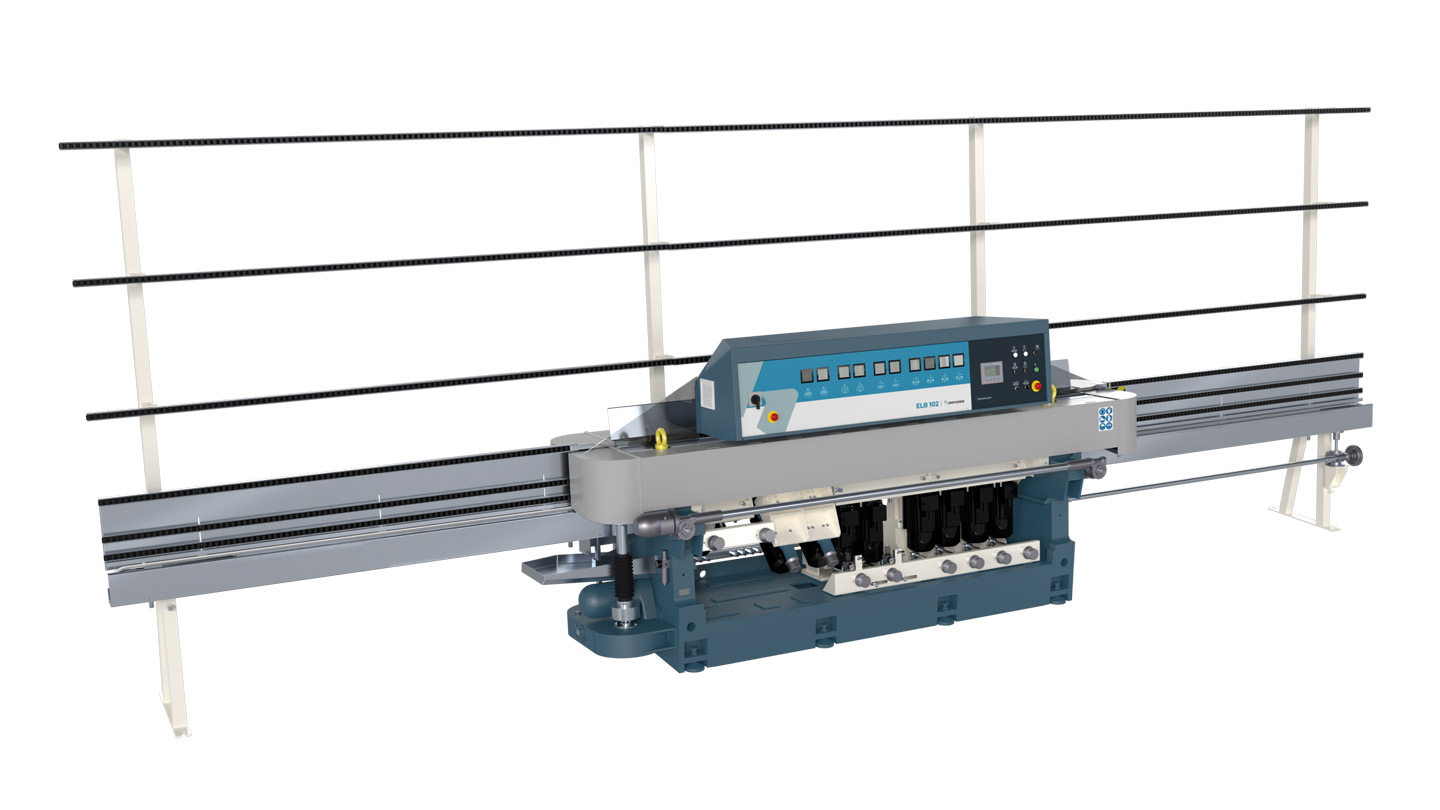

Bovone ELB 102
Precision & Efficiency in Glass Edge Processing
The Bovone ELB 102 is a high-performance straight-line edging machine engineered for flat glass finishing. It combines speed, adaptability, and superior edge flatness — ideal for architectural glass, panel applications, and demanding glass fabrication work.
Key Features

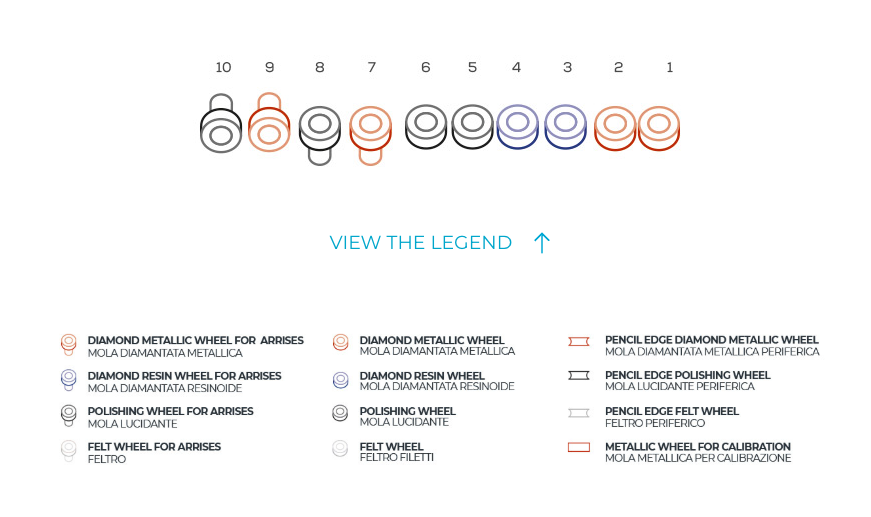

- 10 cup wheels and 2 felt wheels for simultaneous flat edge and arris polishing
- Optimised motor configuration for a uniform finish, even on large sheets
- Independent spindle control with direct shaft motors
- High conveyor load capacity to support heavy and large glass pieces
- User-friendly control panel with automated glass detection and diagnostics
- Compatible with a wide range of glass thicknesses (3–55mm)
- Fully enclosed water and lubrication system for extended component life
Applications
Ideal for high-volume production of:
- Shower screens
- Shopfitting and balustrade glass
- Windows and doors
- Mirrors and decorative panels
- Commercial façades
Technical Data
| Feature | Specification |
| SPEED [m/min] | 0.35 – 5.4 |
| ARRIS WIDTH [mm] | 5 |
| MINIMUM SIZE [mm] | up to 6mm 40 x 40 up to19mm 50 x 50 – 40 x 80 above 19mm 70 x 70 |
| THICKNESS [mm] | 2 – 30 (OPT. 50) |
| ELECTRICAL POWER 400V 50Hz | 28kW 64A |
| DIMENSIONS LxWxH [mm] | 7850 1000 2700 |
| WEIGHT [Kg] | 3800 |
Why Choose the Bovone ELB 102
- Minimal operator intervention required once programmed
- Exceptional edge flatness even at high throughput
- Reduced cycle times with continuous feed operation
- Long-term reliability backed by Italian engineering and craftsmanship
- Energy-efficient design with reduced noise and vibration
