Bovone ELB 11/45

Maximum Versatility for Angled Glass Edging

The Bovone ELB 11/45 is a high-performance straight-line edging machine equipped with 11 spindles, engineered to deliver exceptional edge polishing on flat glass sheets with arrises at a 45° inclination. It’s ideal for manufacturers seeking precision, reliability, and the flexibility to meet architectural and decorative glass demands.

Key Features

11 spindles for superior edge quality and output
Capable of polishing flat edges with arrises at a 45° angle
Front and rear conveyor chains ensure stability and alignment
Adjustable processing angle for flexible production
Built for continuous operation in demanding environments
User-friendly control interface for easy setup and monitoring

Applications

Glass panels for façades and interior partitions
Frameless glass balustrades
Designer shower enclosures
Premium furniture glass
Architectural fit-outs
Decorative and structural glass

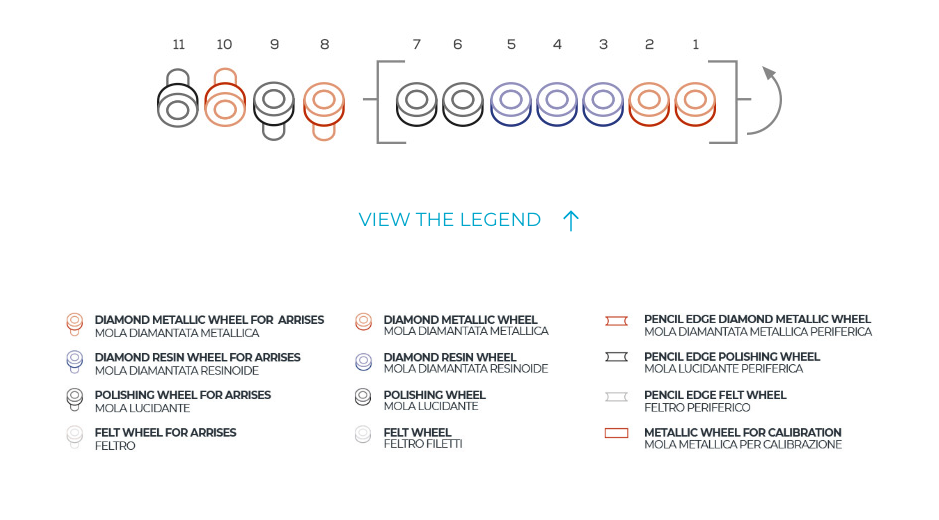

ELB 11/45 LEGEND

Technical Data

Feature	Specification
SPEED [m/min]	0.35 – 5.4
MITER ANGLE	0° to 45°
ARRIS WIDTH [mm]	5
MINIMUM SIZE [mm]	up to 6mm 40 x 40 up to19mm 50 x 50 – 40 x 80 above 19mm 70 x 70
THICKNESS [mm]	2 – 30
ELECTRICAL POWER 400V 50Hz	400V 50Hz / 30kW / 68A
DIMENSIONS LxWxH [mm]	7950 (L) x 1250 (W) x 2900 (H)
WEIGHT [Kg]	4150

Why Choose the Bovone ELB 11/45

With enhanced capacity and an expanded spindle set, the ELB 11/45 combines Italian engineering excellence with robust construction. It’s the ideal choice for fabricators needing high throughput without compromising on precision or finish — especially for projects involving angled edge detailing.
