Bovone Glass Integrated Robotic System

bovone logo

Take the operator out of glass grinding.

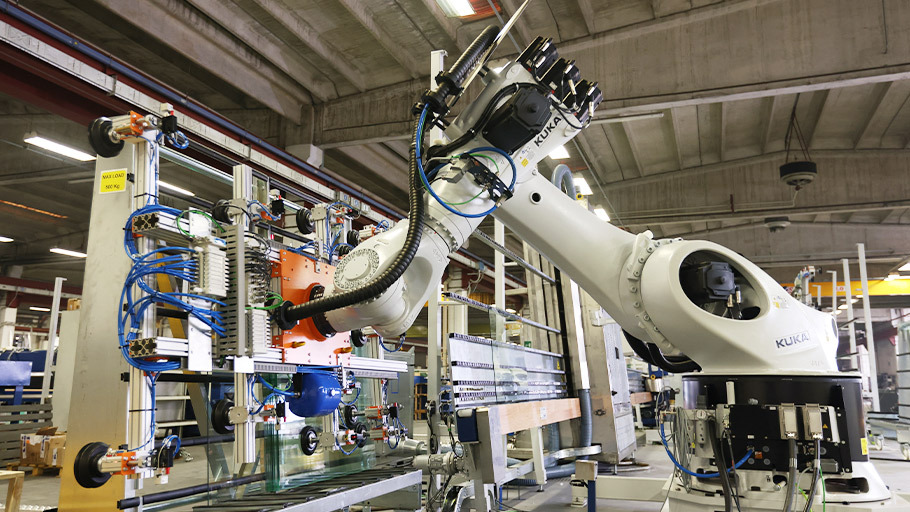

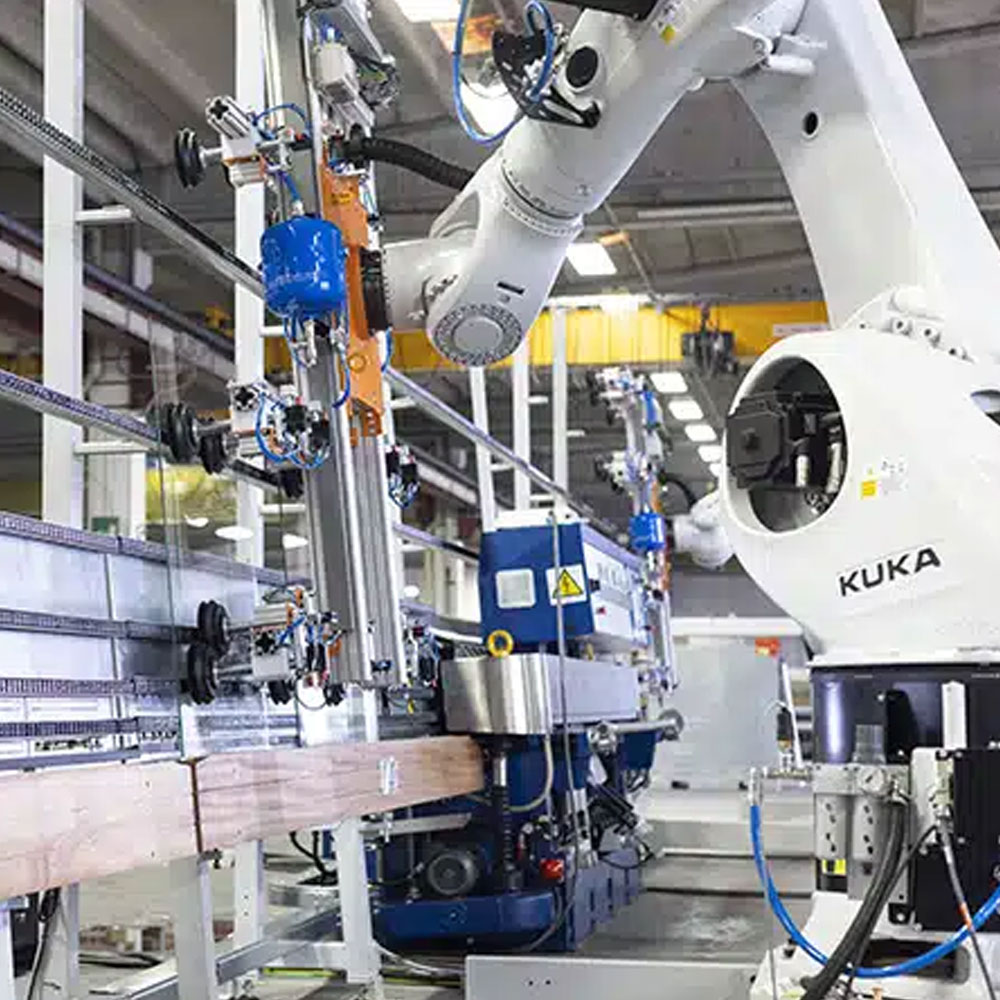

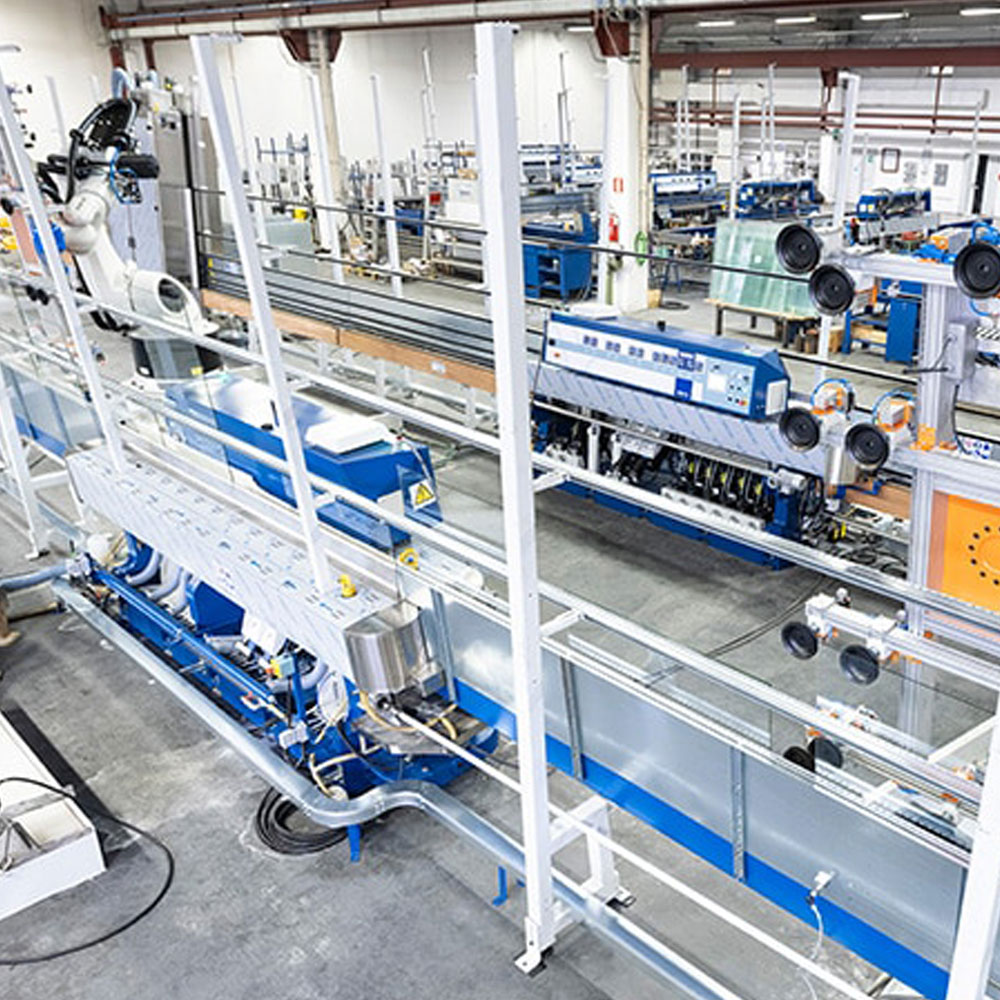

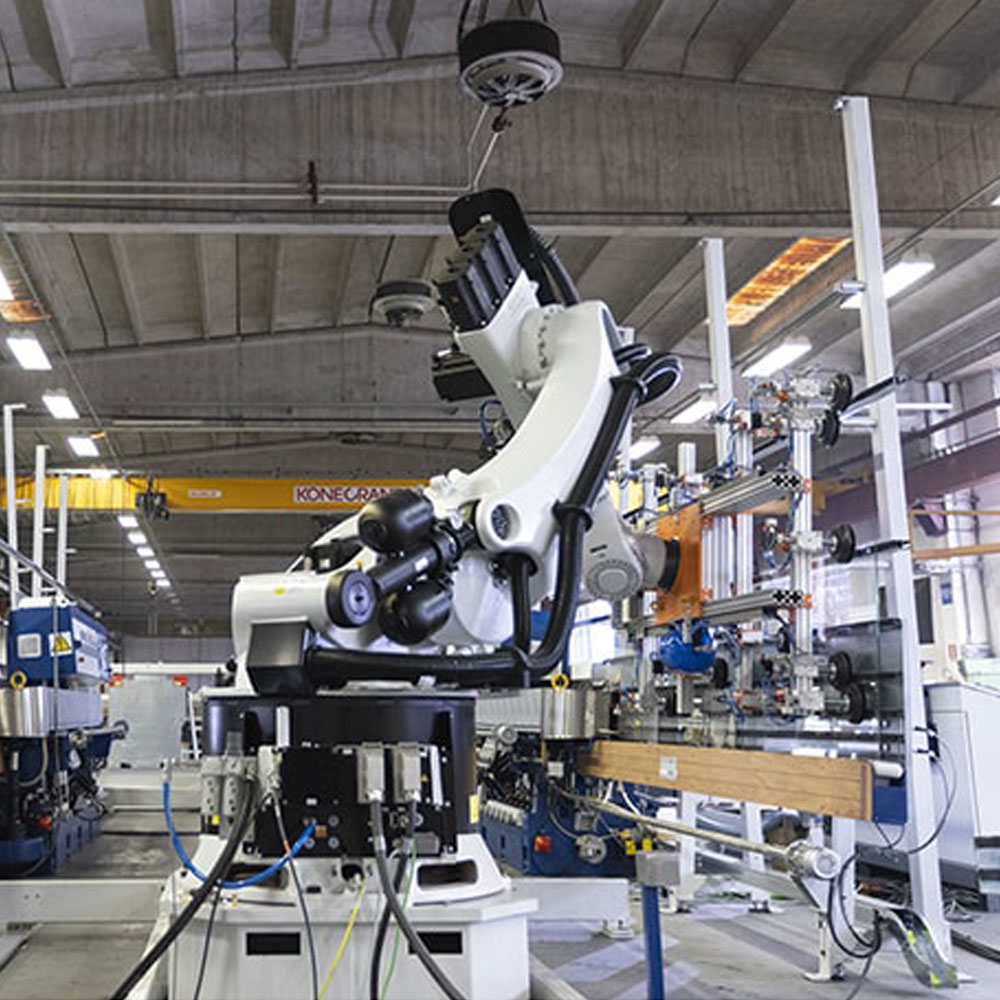

Bovone’s integrated robotic system pairs multi-axis robots with straight-line edging machines to automate the full grinding cycle, from loading through to unload. Large slabs move through the line without a person handling them, cutting both labour risk and cost.

Built to Industry 4.0 standards, the system is fully connectable for production traceability and self-adjusting parameters, and can be configured as a single edger with one robot or a full dual-edger island for higher-volume lines.

bovone glass intergrated robotics system

KEY FEATURES

  • Robotic Grinding Integration — Multi-axis robots load, rotate and unload glass across one or two straight-line edgers, automating edge processing end to end.
  • No-Operator Islands — The full cell runs without staff present, removing manual handling risk on heavy, awkward slabs.
  • Auto-Compensating Edgers — Spindles adjust automatically for wheel wear, with processing recipes uploaded and run without manual resets.
  • Lightweight Gripper Design — Reduced weight and footprint grippers cut the load on the robot for lower energy use and faster cycles.
  • Modular Line Configuration — Add washing, drilling or other finishing machines in line after the edgers, built around your process.
  • Full Traceability — Connectable for production monitoring and self-adjustment in line with Industry 4.0 protocols.

APPLICATIONS

  • Edge Processing: Flat edge, arris and bevel grinding across one or two edgers

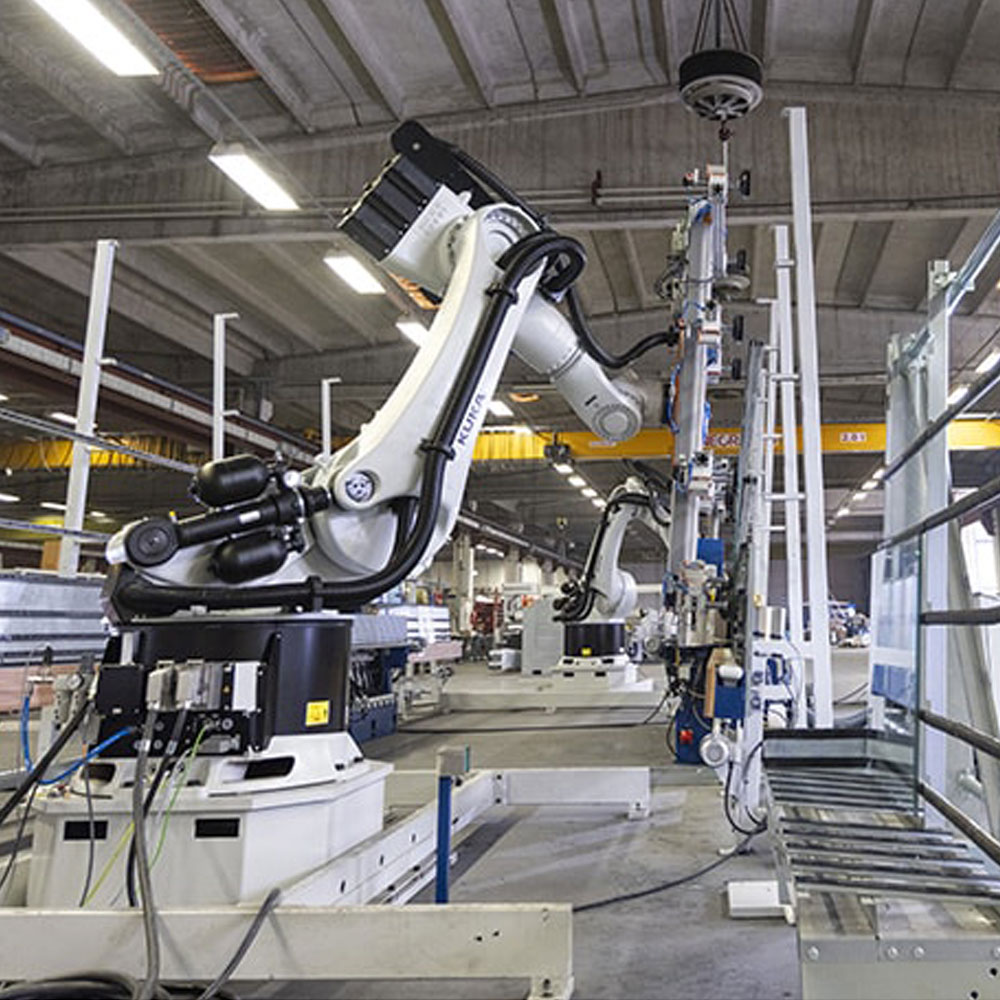

  • Slab Handling: Automated loading, rotating and unloading of large, heavy glass
  • Line Integration: Washing, drilling or other finishing steps added downstream of the edgers
bovone glass intergrated robotics system

Up to 25% faster cycle times than standard equipment of this type, with a measurable increase in operator safety.

Find out more

INDUSTRIES

  • Architectural & Facade Glass
  • Automotive Glass
  • Glass Processing & Fabrication

Technical Data

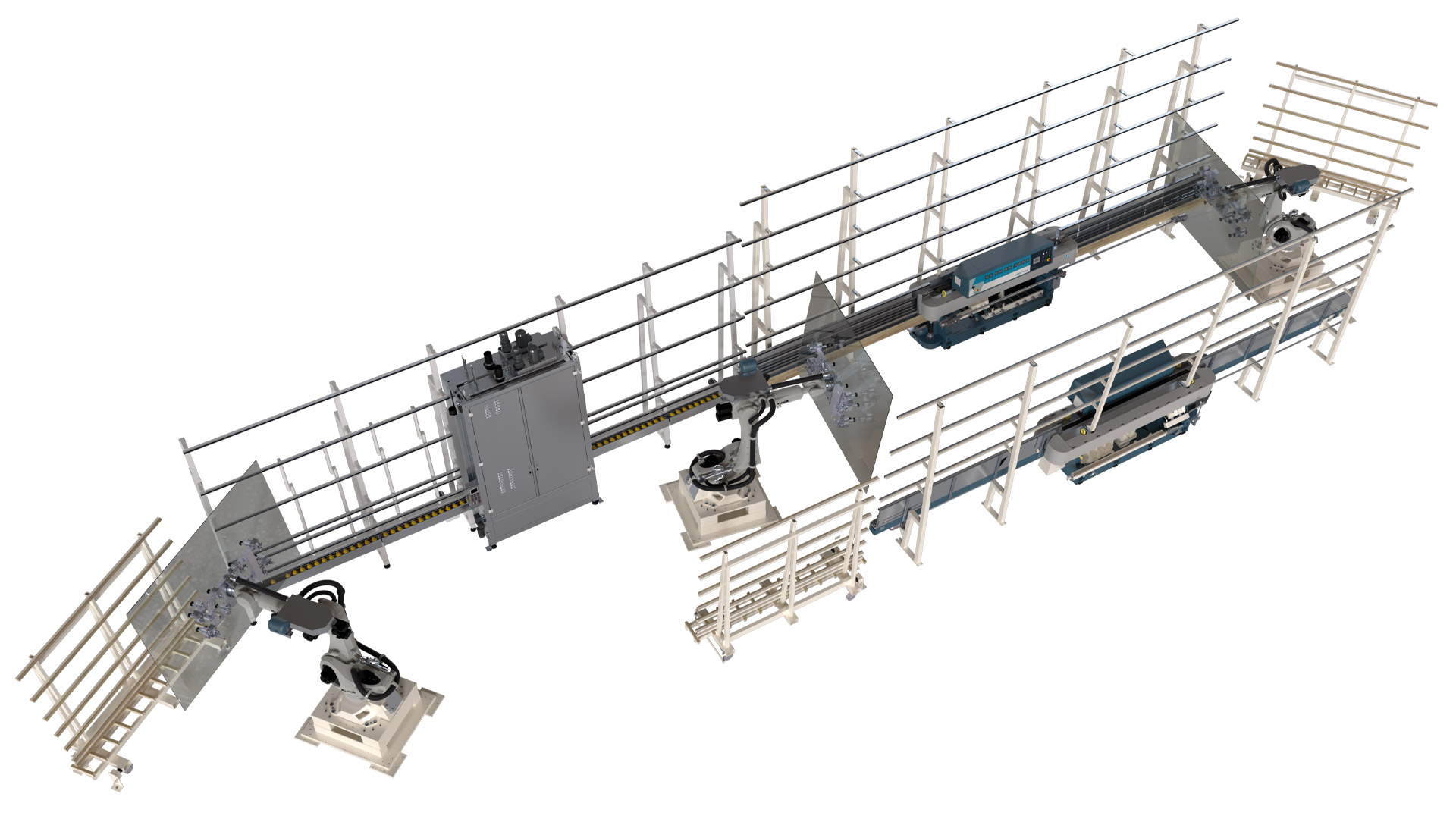

ConfigurationSingle edger + 1 robot, or dual-edger island with up to 3 robots
Line SpeedAbove 5 m/min on edge processing
OperationFully automated — no operator required during production
Gripper DesignReduced weight/footprint for lower robot load and energy use
Wheel Wear CompensationAutomatic spindle adjustment during processing
Connectivity
Industry 4.0 — traceable, self-adjusting production parameters
Optional Add-onsWashing, drilling and other finishing modules in-line

Why Choose the Bovone Glass Integrated Robotic System?

Built on robotic components from established manufacturers, the system is backed by reliable after-sales support and proven in glass processing environments. Robotic integration lifts throughput and cuts cost while taking operators out of the highest-risk handling tasks. Purpose-built grippers add measurable time and energy savings on every cycle, making it a straightforward upgrade path for processors looking to automate without a full line rebuild.
