CMS Brembana Milestone s

3- and 5-axis waterjet cutting system

Milestone S is an advanced, versatile, high-performance waterjet cutting system – either pure water or hydro-abrasive – able to accomodate the most diverse production demands in different application fields, delivering highly accurate cuts even in 3D.

• The bridge structure with fixed table, mobile crossbeam and high guides make it compact and able to move quickly

• All motions are carried out by tempered ground rack, driven by brushless motors

• The axes’ guideways are housed within the structure and protected by an innovative system called “Powder-Free”, which provides full protection against water and powders

Advantages

UNMATCHED CUTTING PERFORMANCE
The monolithic structure with electric gantry offers a sturdy and rigid solution for a speed of 40 m/min and acceleration of 2 m/s2 at the top of the market standards.

NFINITE OPPORTUNITY: SAVINGS UP TO 31% OF THE CYCLE TIME
The most compact solution on the market with infinite rotation, 31% less cuttig cycle, avoiding to recover the revolutions of the C axis to align internal wires and tubes.

SMART SEALING: SAFE PROTECTION FROM DUST AND WATER
Sliding guides enclosed within the machine structure and protected by a machine tool style labirinth, named “Powderfree”, avoiding that moisture and abrasive media can damage the motion system.

UP TO 75% MORE PRODUCTIVITY
The versatility of waterjet to cut a wide range o materials, with custome solutions to increase the productivity up to 75%, like pendulum cycle or the multiple cutting configuration up to 4 independent 3 axis heads.

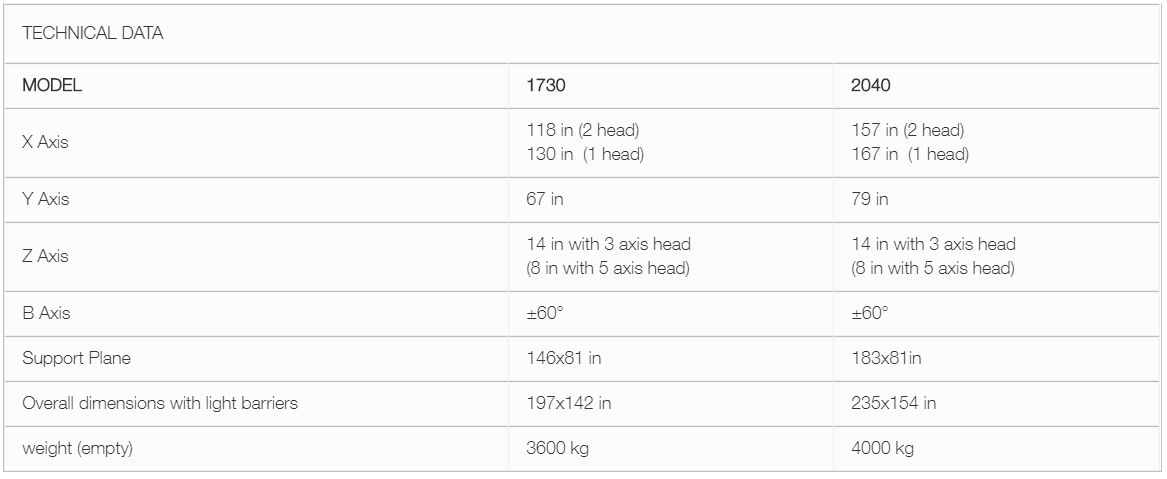

Technical Data
