CMS Evotech

3 and 5 axis machining centres with mobile gantry structure

3 and 5 axis machining centres with mobile gantry structure dedicated to the machining of plastic materials and advanced materials and characterized by a rigid and stable frame.

  • spindles up to 15 kw and 24.000 rpm ensure high removal capacity and top finishing and accuracy levels under any conditions
  • the aluminium worktable is characterized by perfect planarity, ensuring clamping accuracy and advanced nesting machining even with the most severe machining operations on technical details
  • gantry structure driven by a highly dynamic dual motor. Solution dedicated to the processing of plastic materials and advanced materials

Advantages

HIGH REMOVAL AND PERFECT FINISHING
Removing capacity increased by 7%, faster roughing cycles and absolute compliance with the strictest finishing tolerances.
The fixed table and mobile gantry architecture with dual motorization, consisting of a rigid frame equipped with high-precision front and rear sliding guides, ensures maximum efficiency during heavy removal and incomparable finishing quality in the whole work area.

FLEXIBILITY AND CLAMPING EFFECTIVENESS
The built-in direct vacuum system and the T-slots allow the optimal clamping of the sheets and the positioning of all types of mechanical clamping equipment. Tolerances are always under control owing to a multi-functional and highly efficient aluminium work table that ensures perfect planarity over time.

LIMITLESS MACHINING
The high workpiece throughput dimension and the Z axis travel allow machining workpieces up to 500 mm high. Ideal solution in the production of engineering and prototype parts in plastic materials

THE POWER OF 5 AXIS
PRISMA operating units with 5 interpolating axes equipped with power up to 17Kw 24000 rpm, specifically configured for the processing of plastic materials: this is ideal solution for the production of technical components made of the most performing and demanding resins.

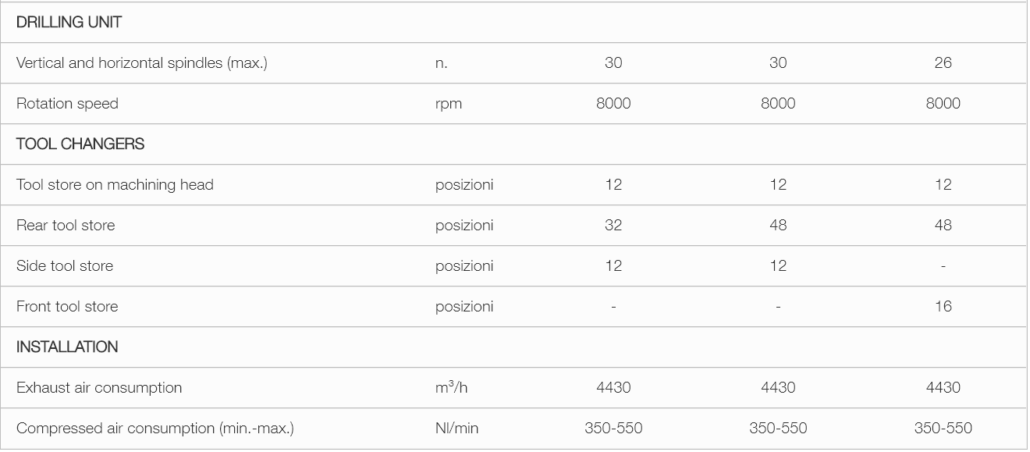

Technical Data
