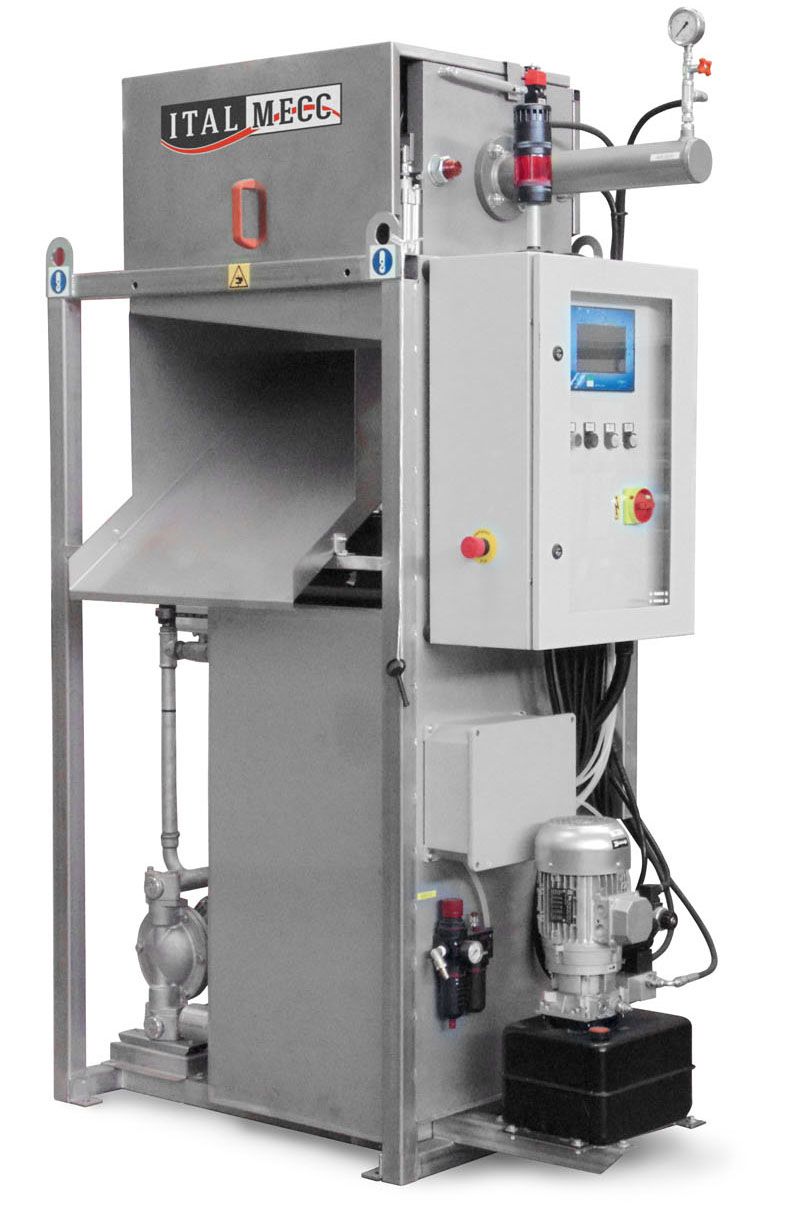

ITALMECC ECOPRESS 300

AUTOMATIC COMPACT FILTER-PRESS

High efficiency and compact filter-presses, represent the best solution of mud treatment for the small & medium Stone, Concrete and Glass companies.

These Compact filter-presses with plates dimensions 300 x 300mm are completely made in Stainless Steel AISI 304, they are the right compromise for all those laboratories that require a quick mud treatment, having little space available for the installation. With the ECOPRESS 300 Filterpress, it is also possible to install it on the frame of the the lamellar water clarifiers BCM 8.5 and BCM 11.0, to make a compact monobloc solution.

How it works:

The filter press separates the liquids and solids, specifically when managing slurry produced by clarifiers, using pressure filtration. The slurry is pumped into the filter press chamber and is dewatered under pressure. Each filter press is designed based on the volume and type of slurry that needs to be dewatered. A filter-press doesn’t substitute the Silo water clarifier, it is part of the process to manage the sludge.

Advantages

  • Fully made in Stainless Steel
  • Compact dimensions
  • 10 Minute Cleaning Cycles
  • Crystal ClearWater released
  • Recycles 100% of your process water
  • Increases productivity and saves money
  • Satisfies industrial discharge permitting requirements
  • Turns stone sludge into manageable dry panels
  • Fully automated controls
  • Applicable to all the machinery that works with water;
  • Hourly production rates from 0,036 to 0,19 m3/h (for higher quantity, we have the Ecopress 500 & 800 models)
  • Dirty water system flow rates from 200 to 1.000 lt/min – higher quantity on request.

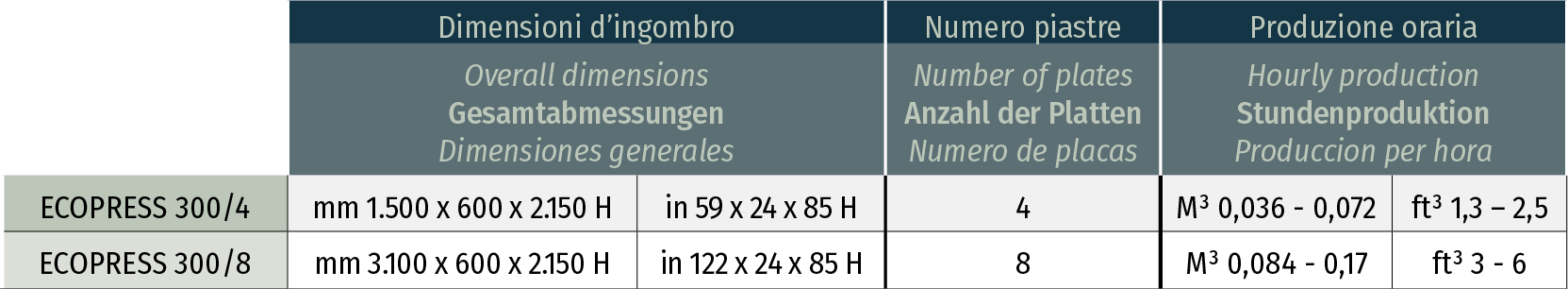

Technical Data
