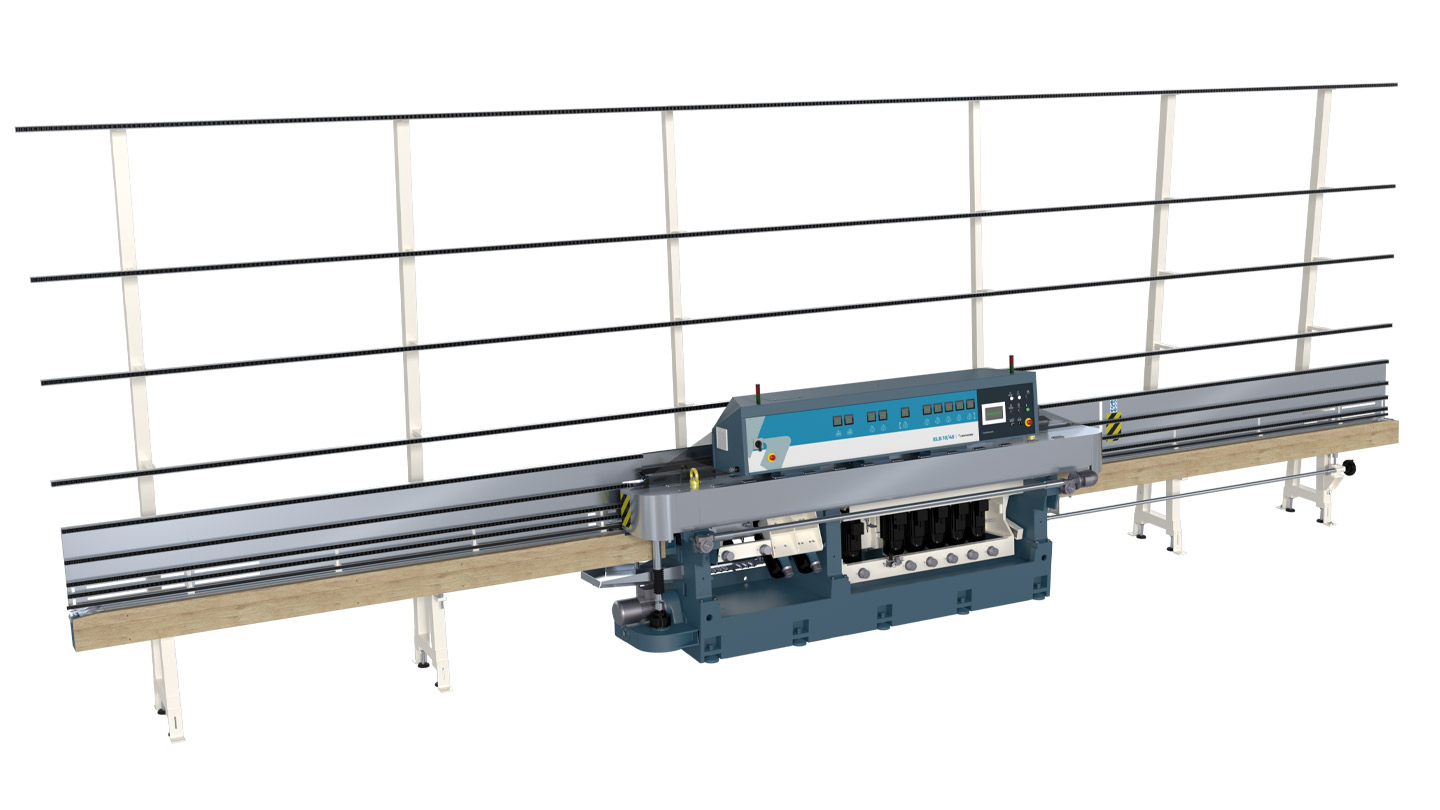

Bovone ELB 10/45

Precision Glass Edging at a 45° Angle

The Bovone ELB 10/45 is a straight-line edging machine designed to execute high-quality flat edge work with polished arrises on glass sheets. What sets this model apart is its ability to process edges tilted at a 45° angle, making it an ideal solution for architectural and decorative glass applications requiring refined, angled finishing.

Key Features

Processes flat edges with polished arrises at a 45° inclination
Independent front and rear conveyor chains for stability
Robust construction ensures minimal vibration and long-term reliability
Adjustable angle capability for versatile production requirements
Integrated control panel for intuitive operation
Optimised for continuous, high-volume workloads

Applications

Architectural glass elements
Shopfronts and internal partitions
Glass balustrades and railings
Shower screens and enclosures
Decorative glass panels
Furniture and display cases

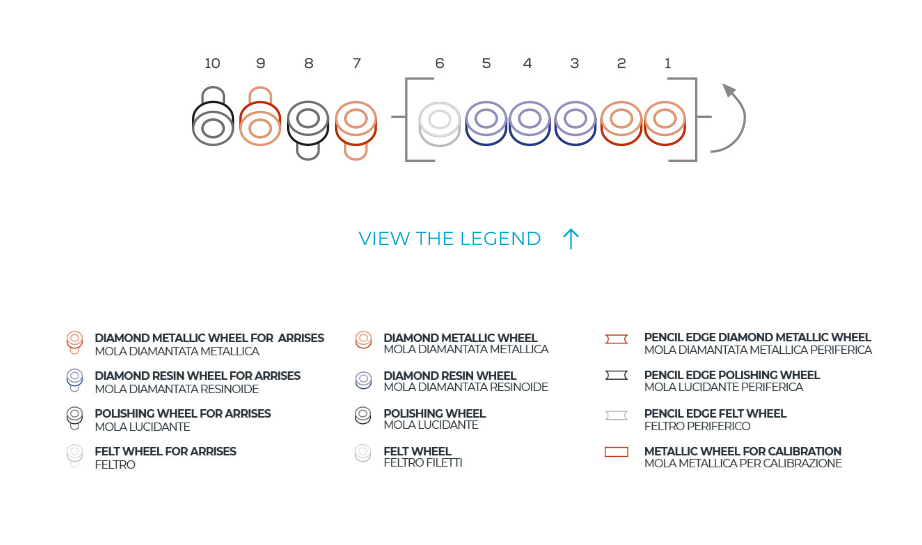

ELB 10/45 LEGEND

Technical Data

Feature	Specification
SPEED [m/min]	0.35 – 5.4
MITER ANGLE	0° to 45°
ARRIS WIDTH [mm]	5
MINIMUM SIZE [mm]	up to 6mm 40 x 40 up to19mm 50 x 50 – 40 x 80 above 19mm 70 x 70
THICKNESS [mm]	2 – 30
ELECTRICAL POWER 400V 50Hz	400V 50Hz / 30kW / 68A
DIMENSIONS LxWxH [mm]	7950 (L) x 1250 (W) x 2900 (H)
WEIGHT [Kg]	4150

Why Choose the Bovone ELB 10/45

This model offers the precision and consistency Bovone is known for, with the added flexibility of 45° edge processing. Its combination of advanced engineering and durability ensures long-term performance in demanding environments, from architectural fabrication to specialised glassworks.
