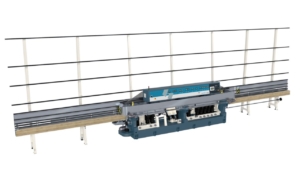

ELB 14/45

High-Precision Flat Edge and Bevel Edging in One Machine

The Bovone ELB 14/45 combines powerful flat edge polishing with precision 45° mitering, all within a single robust, straight-line edging machine. Equipped with 14 spindles, this model is engineered for manufacturers seeking high throughput, versatility, and flawless edge quality.

Key Features

14 spindles: 11 dedicated to flat edge + arris polishing, 3 for 45° mitering
Integrated flat edge and mitering without repositioning the glass
High-speed, continuous operation with adjustable conveyor system
Easy-to-use control panel and durable mechanical construction
Ideal for both architectural and decorative applications
Reduced maintenance and energy-efficient systems

Applications

Glass furniture and interior design features
Shopfitting and display panels
Windows, doors, and facades with polished or mitered edges
High-end architectural and decorative installations
Shower screens and partitions requiring 45° mitering

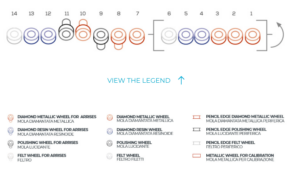

bovone elb 14/45 legend

Technical Data

Feature	Specification
SPEED [m/min]	0.35 – 5.4
MITER ANGLE	–
ARRIS WIDTH [mm]	5
MINIMUM SIZE [mm]	up to 6mm 40 x 40 up to19mm 50 x 50 – 40 x 80 above 19mm 70 x 70
THICKNESS [mm]	3 – 45
ELECTRICAL POWER 400V 50Hz	400V 50Hz / 34kW / 75A
DIMENSIONS LxWxH [mm]	8650 (L) x 1250 (W) x 2900 (H)
WEIGHT [Kg]	5000

Why Choose the Bovone ELB 14/45

With the ELB 14/45, Bovone delivers dual-functionality and productivity in one machine. This model eliminates the need for separate edging and mitering setups, saving time and space while delivering immaculate finishes across a wide range of applications.
