CMS Athena

High speed 5-axis CNC machining center

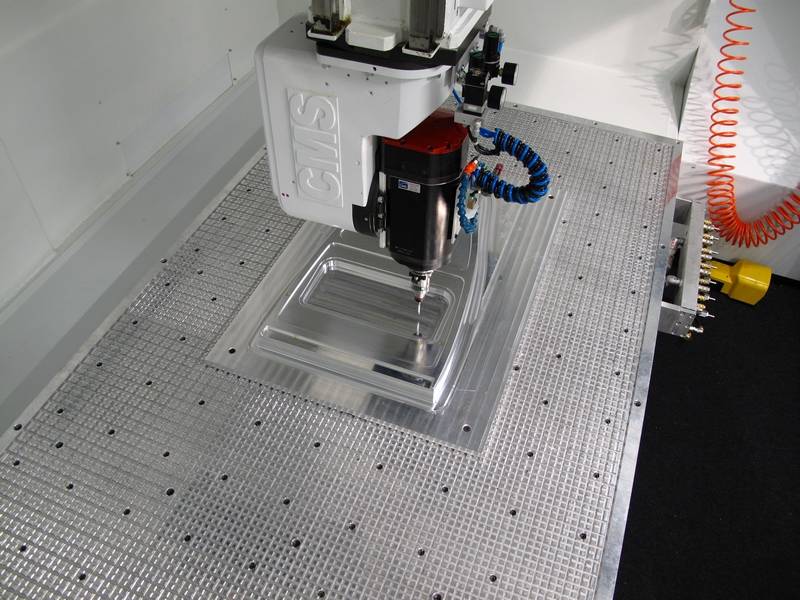

Movable-bridge Movable-bridge machining center specifically designed for high speed processing of plastic and composite materials, providing exceptional motion dynamics to ensure high productivity. The advanced structural design avoids machining vibration and achives excellent finishing quality:

  • very large working areas for the maximum production freedom
  • broad variety of working areas (single zone or tandem cycle)
  • the compact design enables handling and transport without removing any mechanical part, ensuring reduced time for machine restarting
  • a dedicated software for trimming path self-learning enables creating the cutting program directly from the sample workpiece on the machining centre, thanks also to a mobile push-button panel complete with joystick and touch-screen for the control of all CNC functions

athena is available also with rotating tables (TR) and with removable tables APC (Automatic Pallet Change).

Advantages

FASTER PROGRAMMING AND CONTOURING

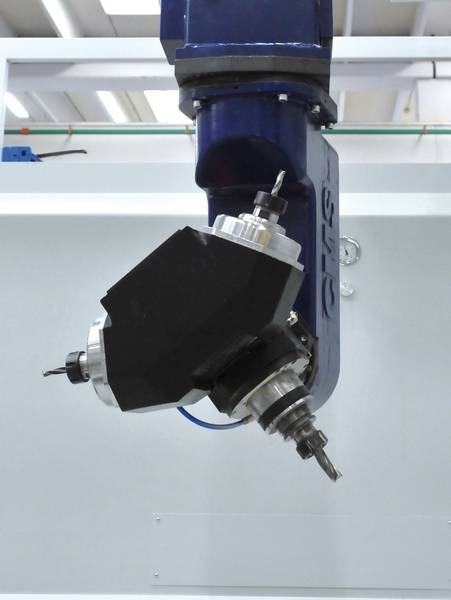

Avoids any repositioning operations thanks to the CX5 operating unit, characterized by the the largest rotary XY axis on the market.
15% reduction in cutting times and programming of contouring cuts

REDUCTION IN CYCLE TIME RESPONSIVENESS AND SPEED WHERE AND WHEN NEEDED
Dedicated dynamics, during both acceleration and braking, for all cutting cycle phases.
13% reduction in comprehensive machining times due to shorter repositioning spaces required between one phase and the next.

CLEANING OF WORKTABLE IN ZERO TIME
Zero chips on the work surface thanks to the monobloc frame integrating the table with the base. The chips generated during machining fall directly into the collection tanks placed on the ground, which are easy and quick to remove.

OPTIMIZATION AND USE OF WORK VOLUMES WITH NON-CONFIGURABILITY LIMITATIONS

Minimum space taken up and maximum use of factory space in proportion to workable cubic space for all versions. Its compact, hard structure was designed to grip to the working stroke as much as possible. Pendulum processing available with Athena’s vast configurability, extractable (APC) and rotating (TR) tables make it the perfect solution for trimming plastic materials.

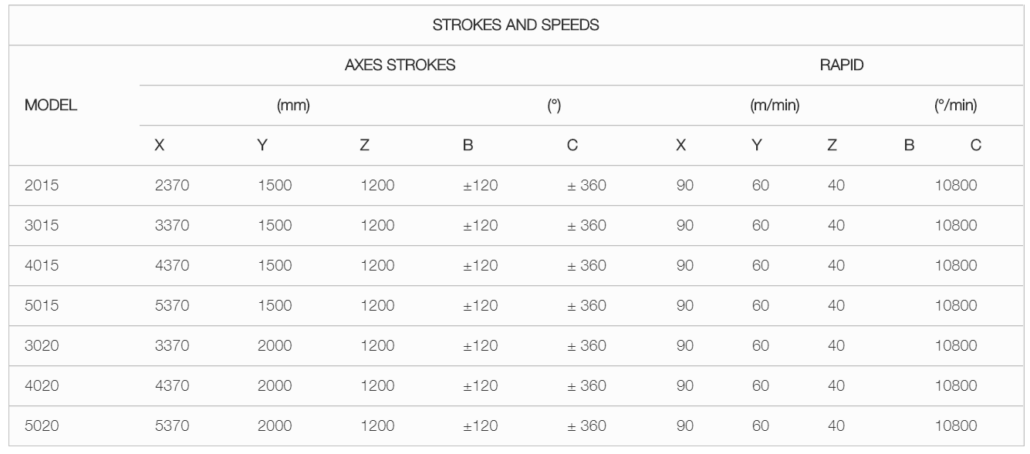

Technical Data
