CMS T-maxi

Horizontal band saw

t-maxi innovating horizontal band saw permits to separate the thermoformed parts from the basic plate in a fast and accurate way and in full operator’s safety. Its simple design, along with its solid structure makes it a tool you cannot do without, once the thermoforming process is over.

Features

  • welded steel supporting frame, rigid monobloc structure
  • suction hoods close to the saw and at the exit of the belt to allow the connection of the chips suction system
  • the belt is polyurethane-coated, to grant a better grip to the part being cut
  • effective and intuitive saw tension and adjustment systems to ensure the quality of the cut. The belt speed can be adjusted

Advantages

QUALITY, CUTTING SPEED AND PRODUCTION CAPACITY ALWAYS ON TOP
Cutting parameters are ideal in all conditions, with an average saving of 15%
 in separating the figure from the basic sheet, thanks to the inverter-adjustable belt speed. The electronic adjustment enables finding the ideal cutting speed quickly for any shape, dimension, thickness and material of the thermoformed workpiece.

MAXIMUM ADHERENCE AND NO SHAPE LIMITS
Maximum adherence
 between belt and workpiece in all shape conditions.
The pressure arms are adjustable and equipped with multiple alternating wheels; they can adapt to the most diversified shapes of the thermoformed workpiece, in both single and multi-imprint mode.

UNCOMPROMISING SAFETY
Maximum operator safety during the whole machining cycle.
Effortless loading cycles and total safety during all the cutting phases thanks to the “anti-fall” alternating plane.

BEST CUTTING QUALITY AND EXTENDING BLADE LIFE
The blade tension-adjusting system is equipped with a light indicator in order to quickly find the ideal working conditions, with a consequent average increase of 15% in the blade life cycle. During blade setting, a special light indicator signals the ideal tension simply and clearly

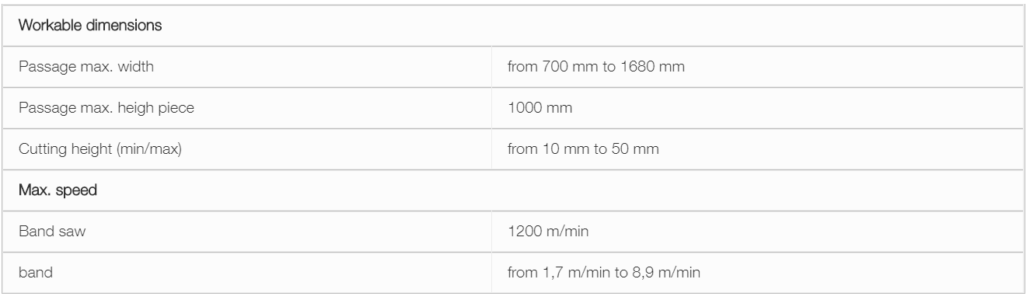

Technical Data
