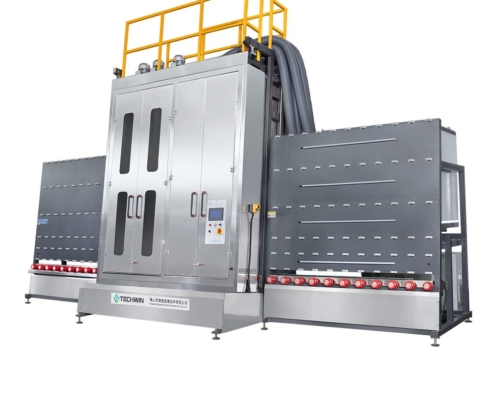

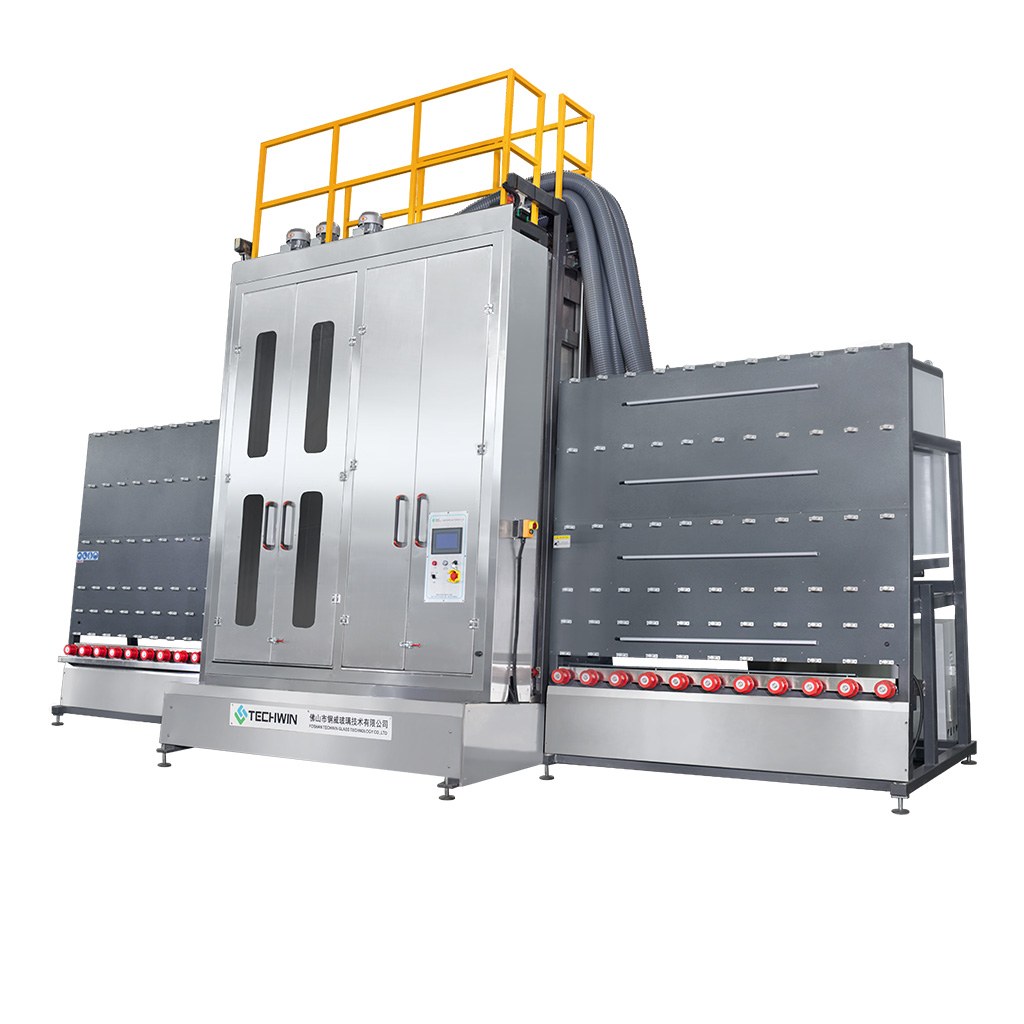

TECHWIN VERTICAL GLASS WASHING MACHINE
A space-efficient vertical washer that cleans and dries architectural, Low-E and processed glass standing upright. Three standard models cover glass heights of 1600, 2000 and 2500 mm.
Enquire about Techwin Vertical Glass Washing Machine
Get the Techwin vertical washer spec sheet

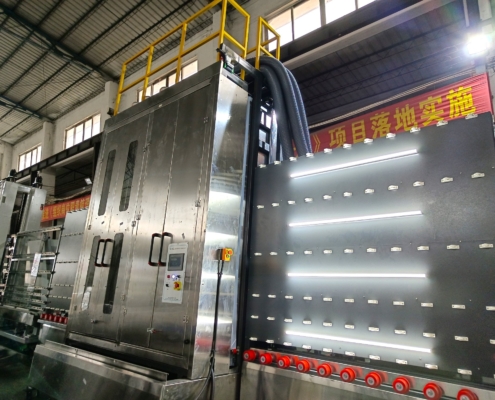

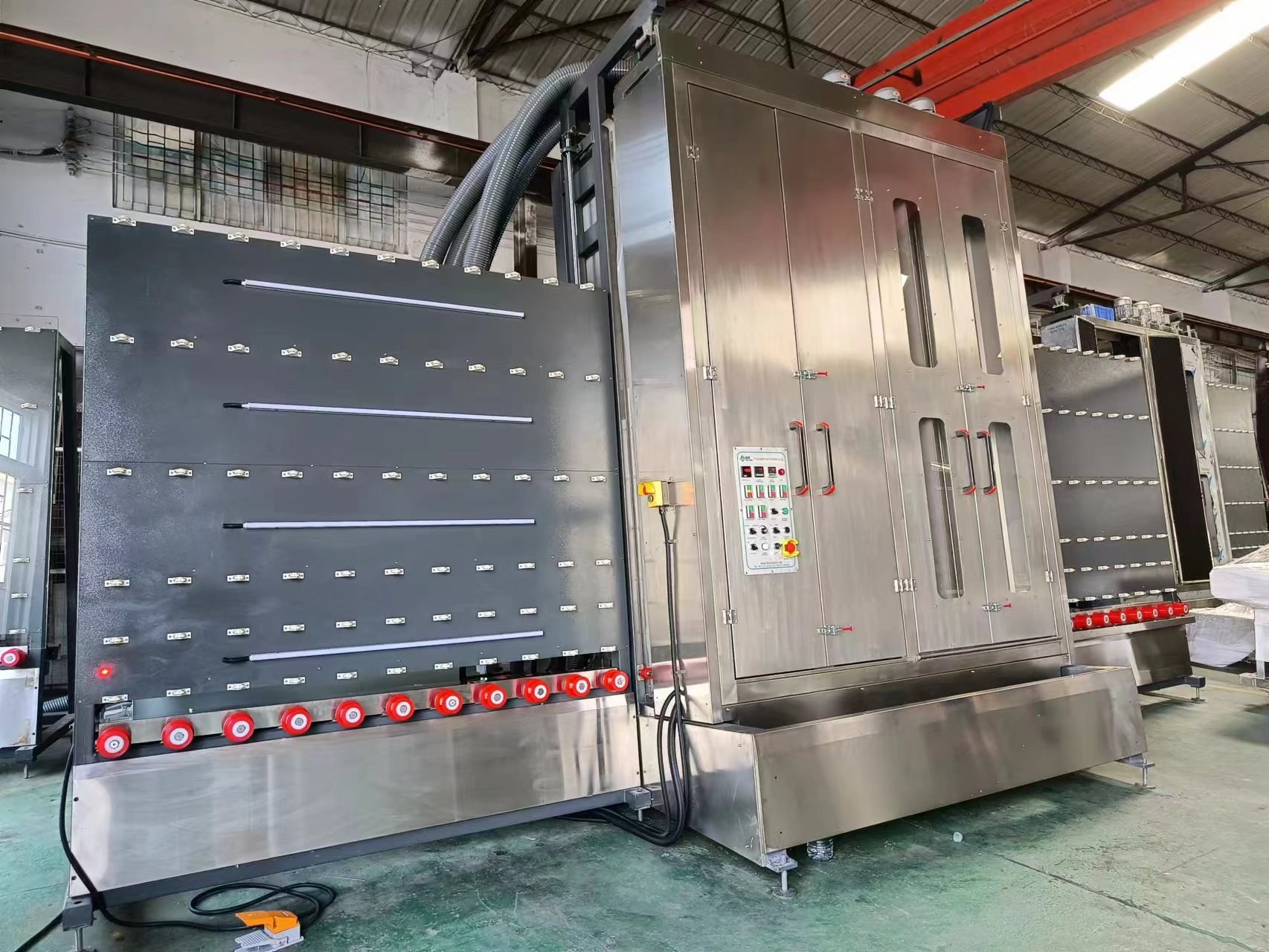

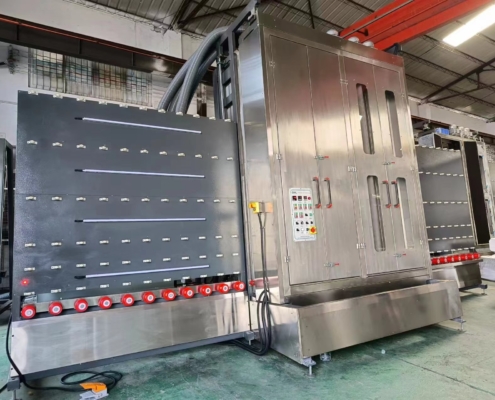

When floor space is tight, or your glass already moves through the factory upright, a vertical washer keeps the line compact. The Techwin Vertical Glass Washing Machine sits on a heavy base built for heavy-duty work and can be configured to match your line, including glass direction, loading and unloading length and brush configuration. Techwin is a specialist manufacturer of glass washing machines, and the range is supplied and supported locally by Innovync.
KEY FEATURES
- Three Standard Sizes: the open top TWLQX-1600 and TWLQX-2000, and the closed top TWLQX-2500.
- Vertical Glass Processing: suits production lines where floor space is limited or vertical glass handling is preferred.

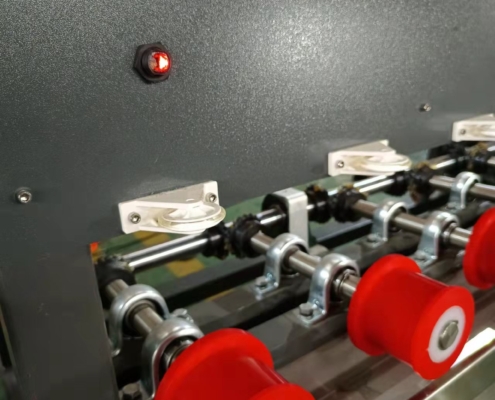

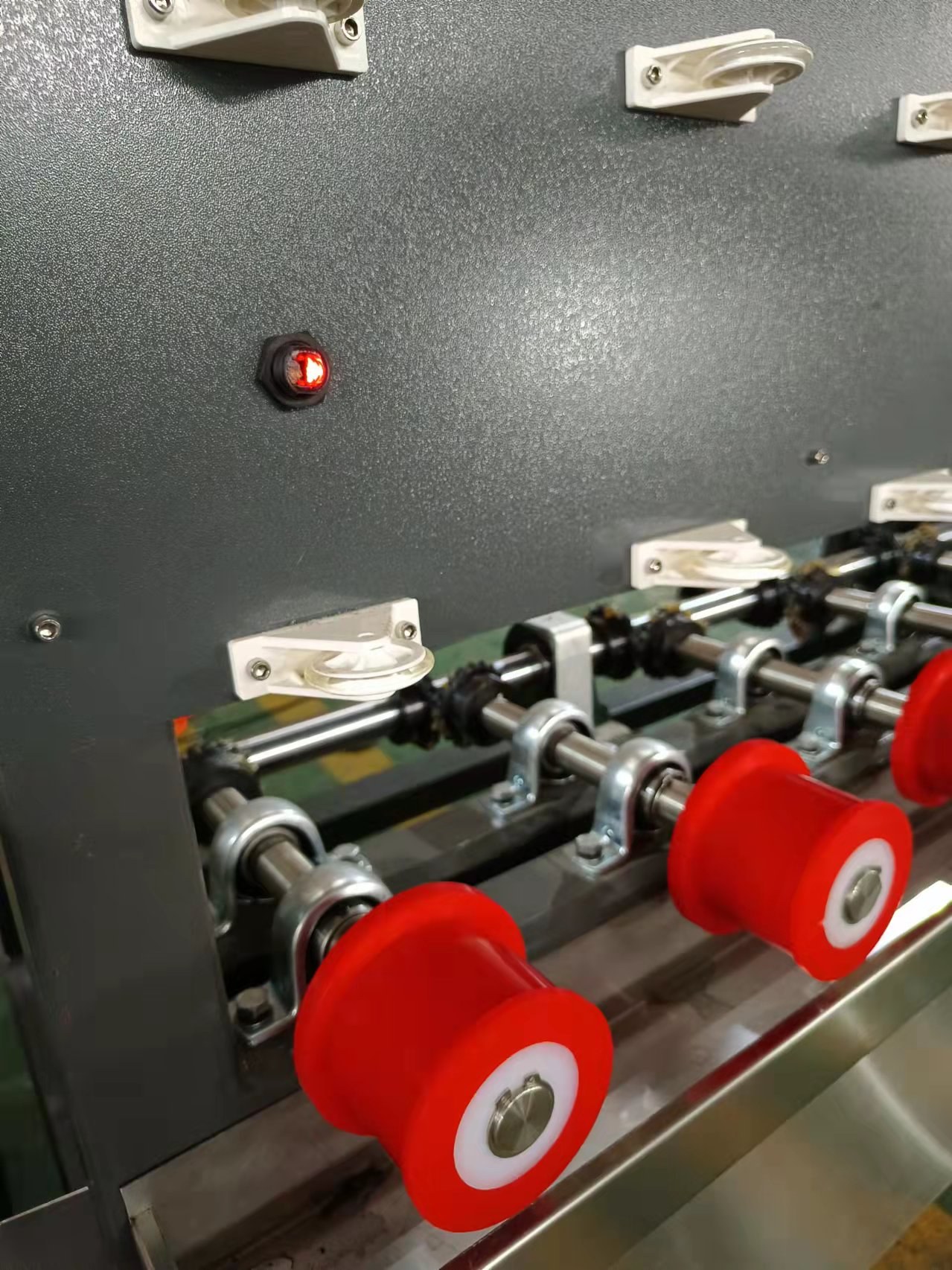

- Left-to-Right or Right-to-Left: glass conveying direction is set to suit your production line layout.

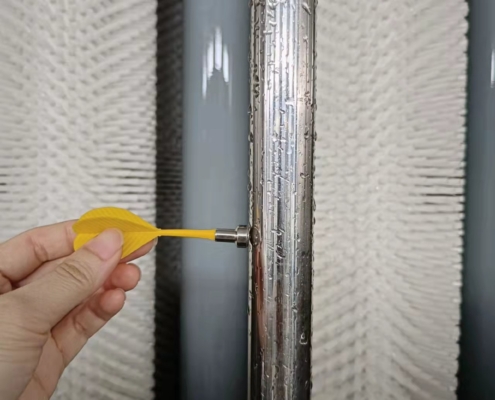

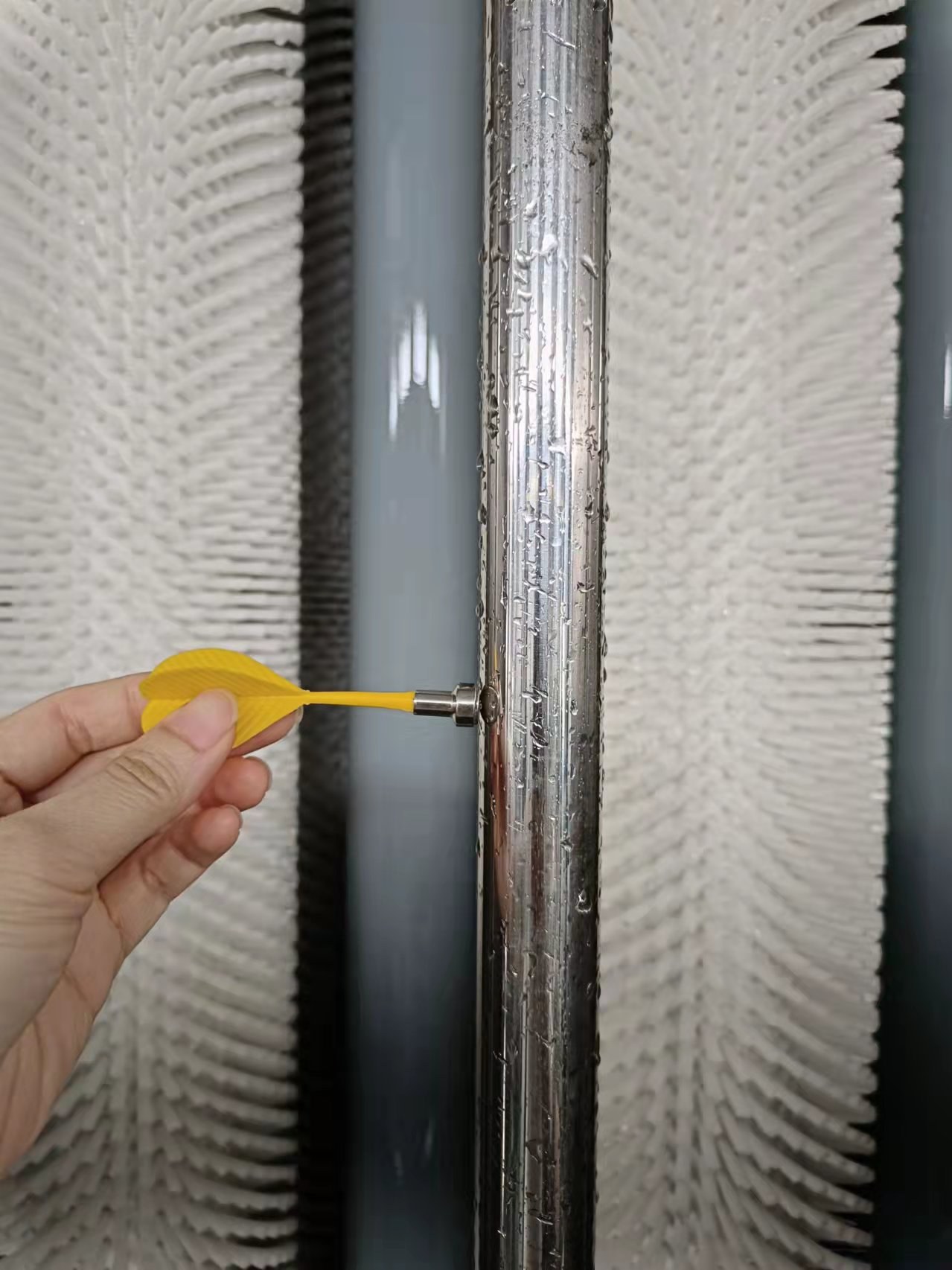

- Low-E Glass Compatible: a dedicated soft brush, separated from the hard brushes to keep dirty water away, gives gentle, effective cleaning of Low-E coated glass.
- Adjustable Washing Speed: processing speed adjusts from 1 to 9 m/min to suit the glass type and production requirements.

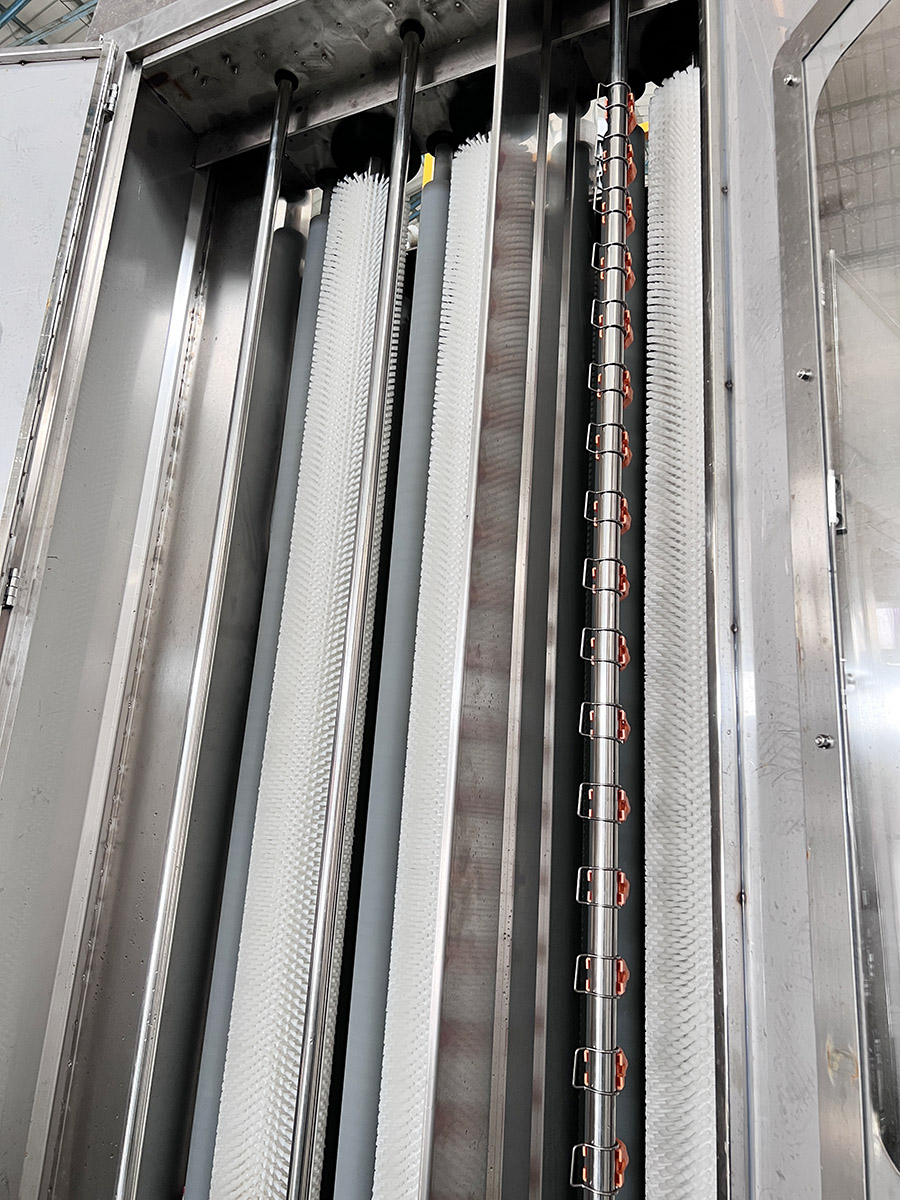

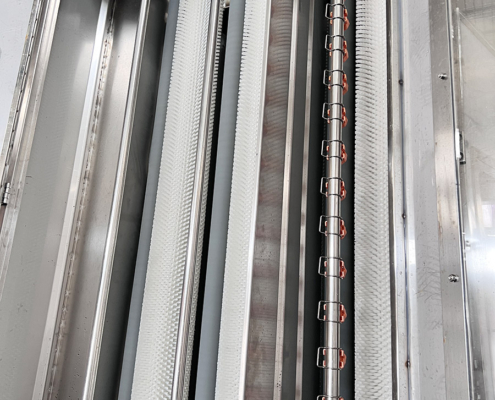

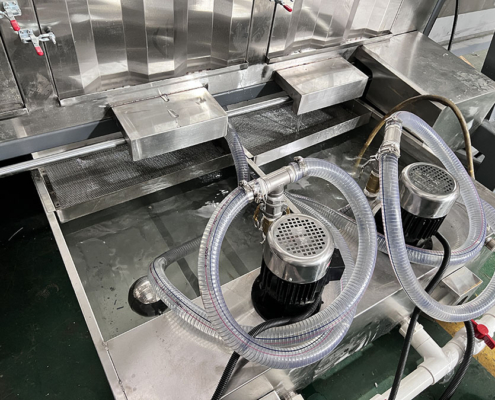

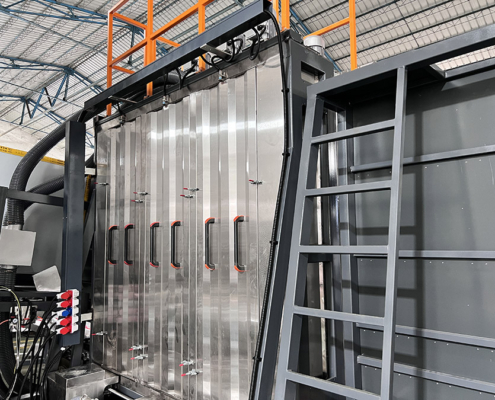

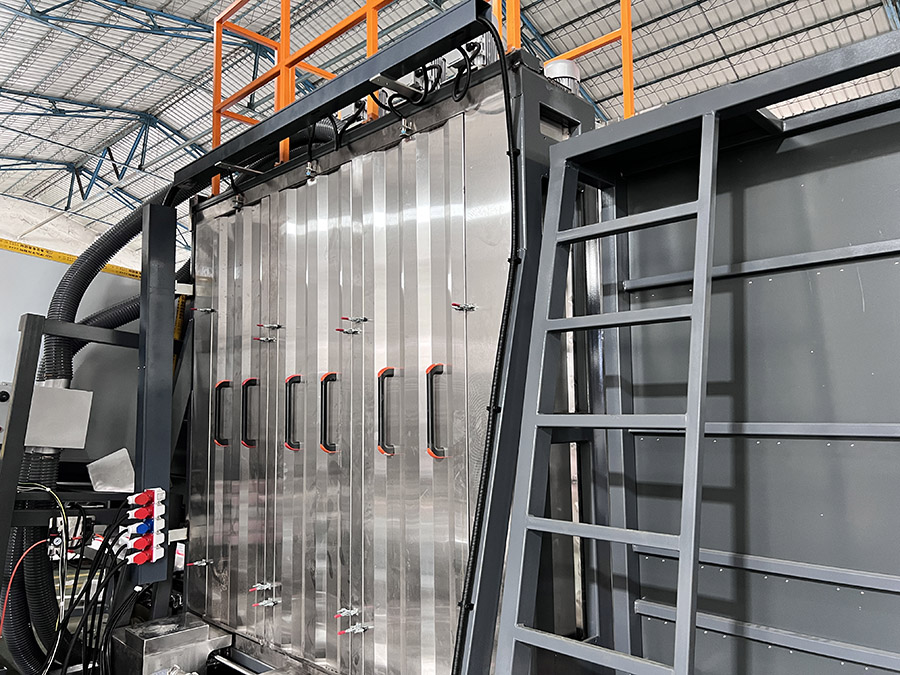

- Easy Maintenance: the washing and drying section opens as a unit for daily cleaning, and the nozzles and stainless steel spray pipes lift out for cleaning.

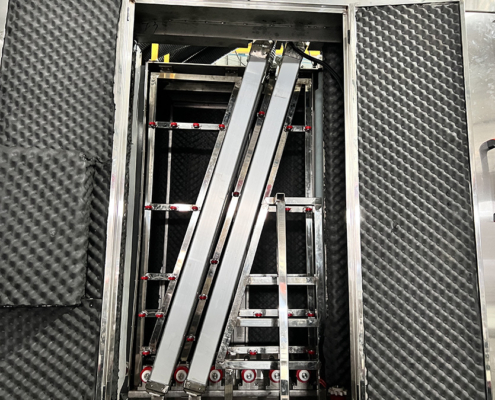

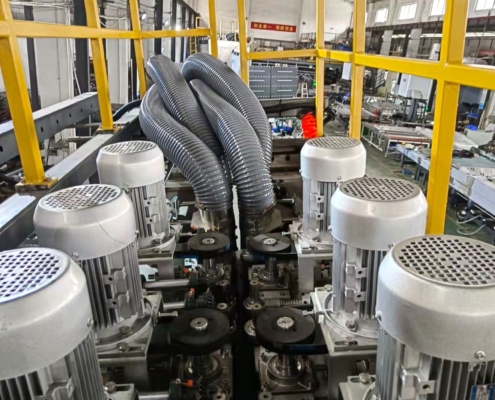

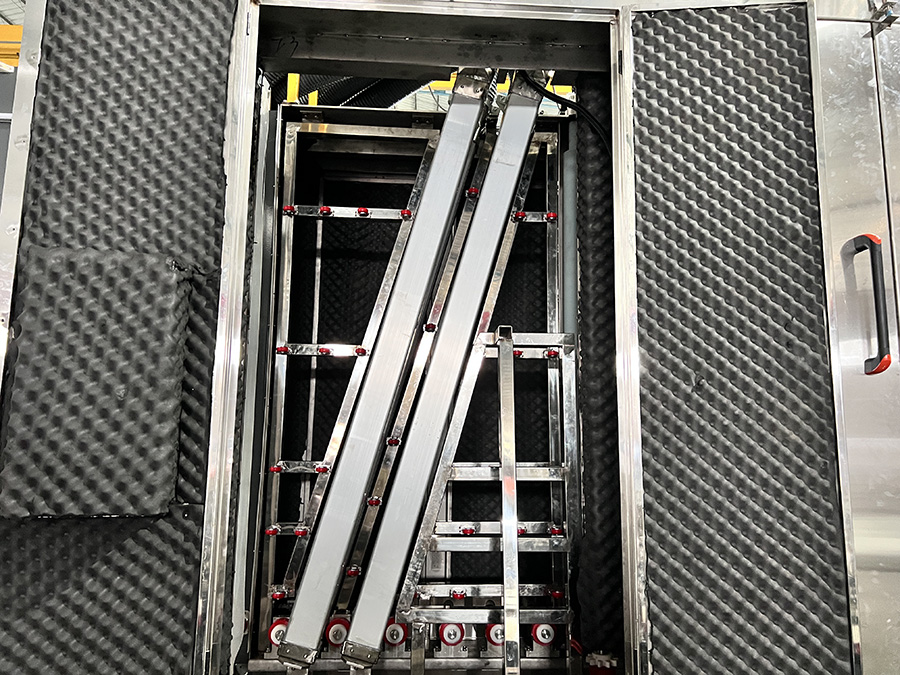

- Quiet Drying: two pairs of slanted air knives, with noise reduction material lining the drying cabinet.

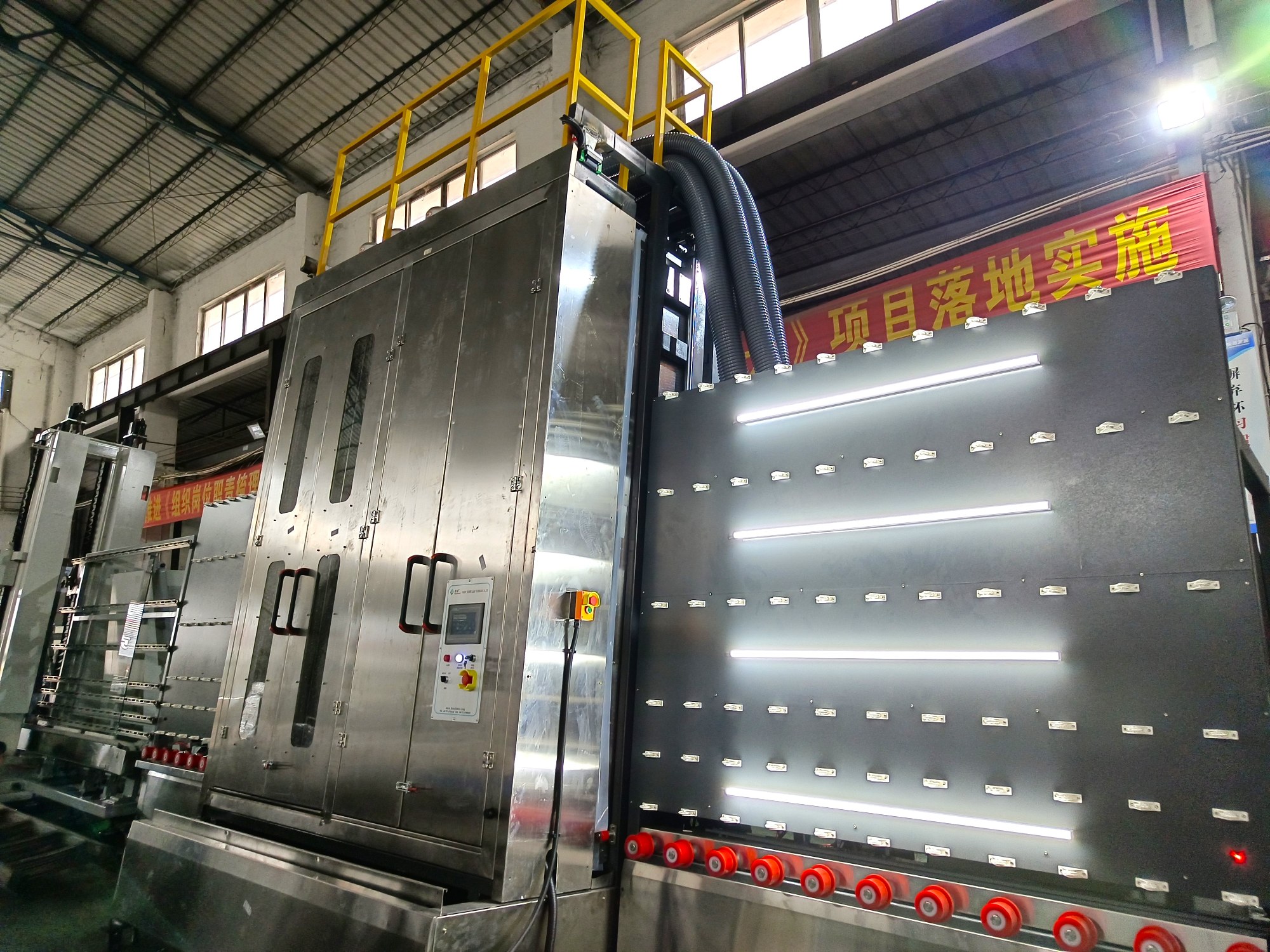

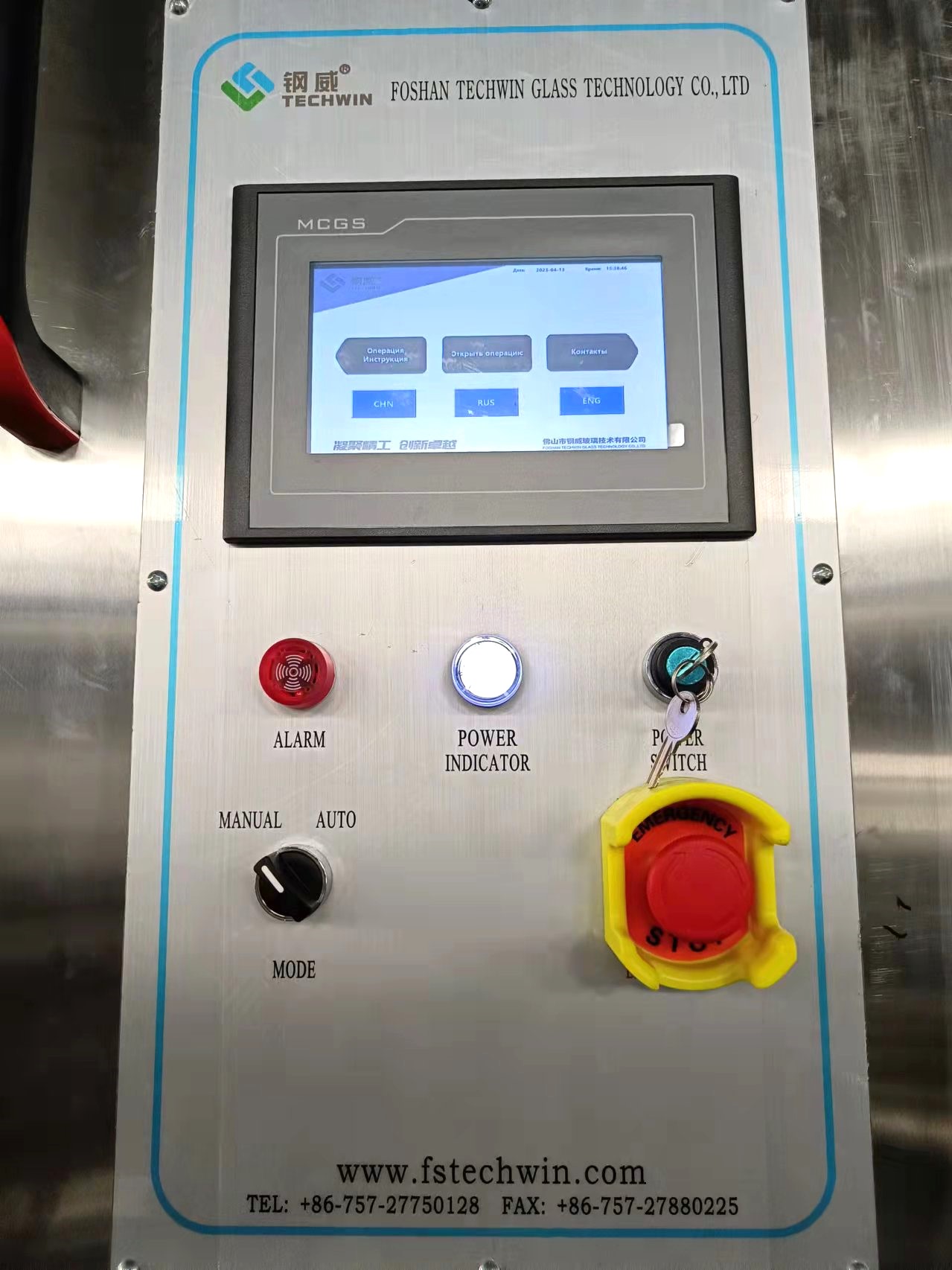

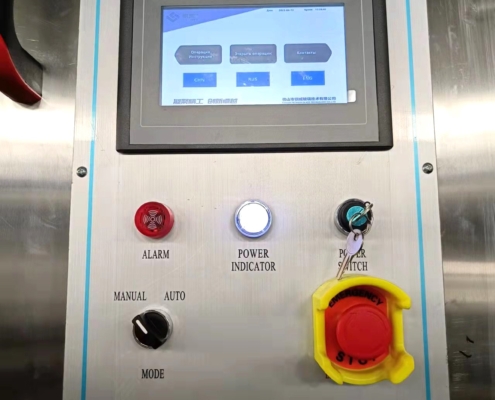

- Safe Glass Handling: a sensor at the exit stops glass from falling, with emergency stops on both sides and LED lights for inspecting glass at unloading.
- Heavy Base: built for heavy-duty work.
APPLICATIONS
- Cleaning and drying architectural glass in vertical production lines
- Gentle washing of Low-E coated glass
- Washing processed glass before the next production step
- Washing glass for insulated glass (IG), laminated and shower door production
INDUSTRIES
- Architectural Glass Processing
- Insulated Glass (IG) Manufacturing
- Laminated Glass Processing
- Shower Screen and Door Manufacturing
- Window and Door Manufacturing
- Facade and Curtain Wall Manufacturing
- Commercial Glazing
TECHNICAL SPECIFICATIONS
Main Technical Data
| ITEM | TWLQX-1600 | TWLQX-2000 | TWLQX-2500 |
| Machine top | Open top | Open top | Closed top |
| Max. glass height | 1600 mm | 2000 mm | 2500 mm |
| Min. glass size | 400 x 400 mm | 400 x 400 mm | 400 x 400 mm |
| Glass thickness | 3 to 19 mm | 3 to 19 mm | 3 to 19 mm |

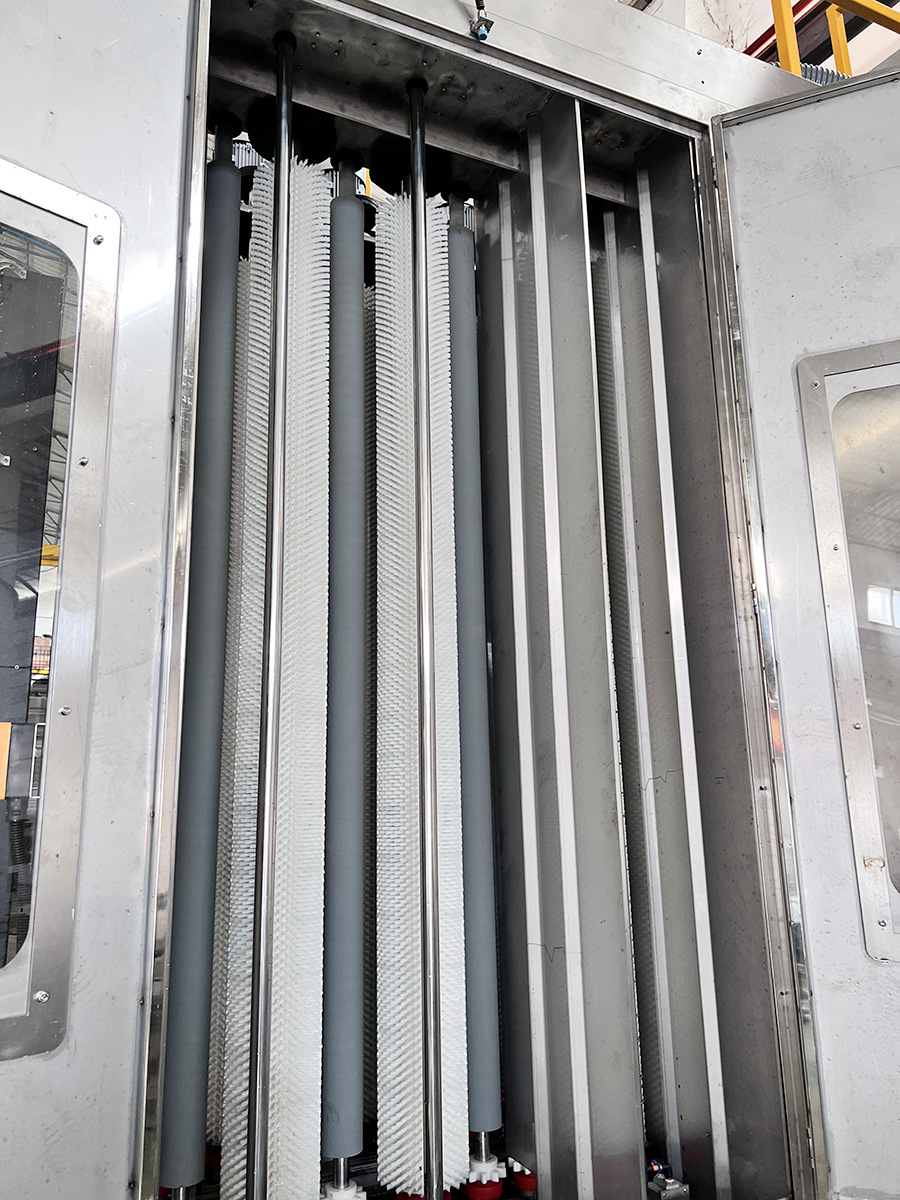

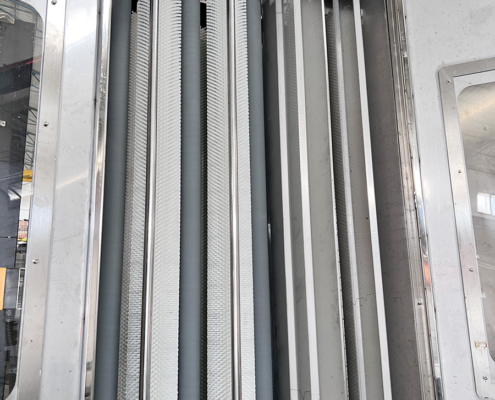

| Brushes | 3 pairs, 1 soft for Low-E | 3 pairs, 1 soft for Low-E | 3 pairs, 1 soft for Low-E |
| Brush diameter | 170 mm | 170 mm | 170 mm |
| Hard brush bristle diameter | 0.25 mm | 0.25 mm | 0.25 mm |
| Soft brush bristle diameter | 0.08 mm | 0.08 mm | 0.08 mm |
| Working speed | 1 to 9 m/min | 1 to 9 m/min | 1 to 9 m/min |

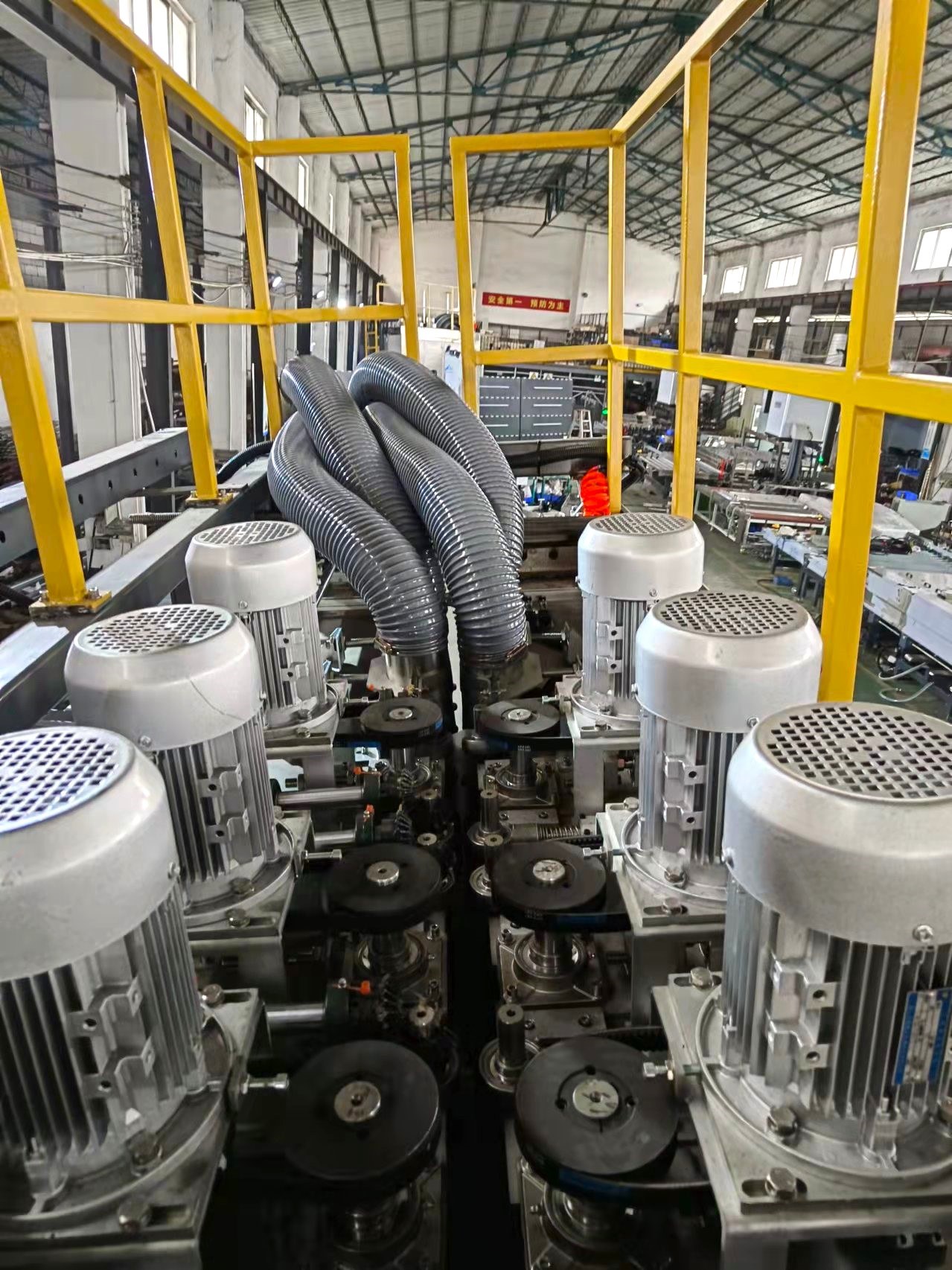

| Blower power | 11 kW | 15 kW | 18.5 kW |
| Blower heating power | 6 kW | 6 kW | 6 kW |
| Water heating power | 12 kW | 12 kW | 12 kW |
| Total power (estimated) | 32 kW | 36 kW | 39 kW |
Total power figures are the manufacturer’s estimates. Glass direction, loading and unloading length and brush configuration can be customised to suit your production line. Component brands and full machine detail are in the spec sheet.
