CMS Brembana aquatec

3- and 5-axis hydro-abrasive waterjet cutting system

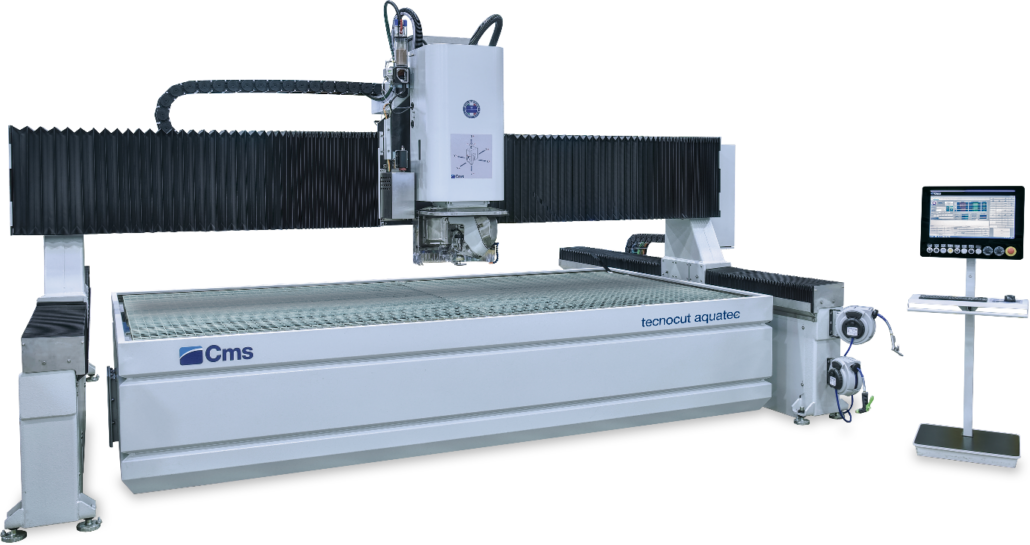

Brembana Aquatec is an advanced, versatile, high-performance abrasive waterjet cutting system, able to accommodate the most diverse production demands in different application fields, delivering highly accurate cuts. The machine consists of a mobile bridge moving along separate highthickness steel supports, fastened to the floor and providing outstanding structural rigidity. This structure delivers high performances even by the most demanding tasks.

• The motions – including the one of the cutting head – are carried out by high precision tempered ground rack, driven by brushless motors.

• Steel guards and the polyurethane bellows protect all motion components from water and powders.

• Loading and unloading the material is fast and simple thanks to 2 or 4 open sides, as well as checking the cutting process. Moreover it allows to possibly install additional equipment to handle the material.

Advantages

UNMATCHED CUTTIN PERFORMANCE
The open frame structure with electric gantry on two separate thick supports on a basement anchored to the floor offer high rigidity even with rapid speed up to 54 m/ min e acceleration up to 2 m/s 2.

INFINITE OPPORTUNITY SAVINGS UP TO 33% OF THE CYCLE TIME
The most compact solution on the market with infinite rotation 33% less cuttig cycle avoiding to recover the revolutions of the C axis to align internal wires and tubes.

EASY OPERATIONS: ACCESS OF WORKTOP FROM 4 SIDES
Excellent access to the cutting area, the large gantry and modular frame allow configurations with wide space around the catch tank for easy loading and unloading operations.

HIGH FLEXIBILITY TO MAXIMIZE THE PRODUCTIVITY
The modular structure of frame and catch tank offer high flexibility for most demanding customers looking for large format hevy duty cutting solutions.

Technical Data



*STANDARD VERSIONS available up to 60120 (472×236 in)

Dynamic precision (3-axis) ± 0,10 mm
Repeatibility of “ps” positioning ± 0,025 mm
